Energy equipment · Steam, power & plant integration
Explore documented used steam turbines, turbine-generator packages and industrial steam boilers. Compare the main duties, review each technical page and request the equipment file for your project.
Each offer has a dedicated technical page and enquiry form. The Omnical boiler is a component of the CHP package, so the two references describe the same plant at different levels of scope.
Back-pressure turbine-generator package with Siemens generator and Renk TB-800 gearbox. A compatible high-pressure steam source is assessed separately.
Normal / maximum ratings. Boiler is outside the documented turbine-generator scope.

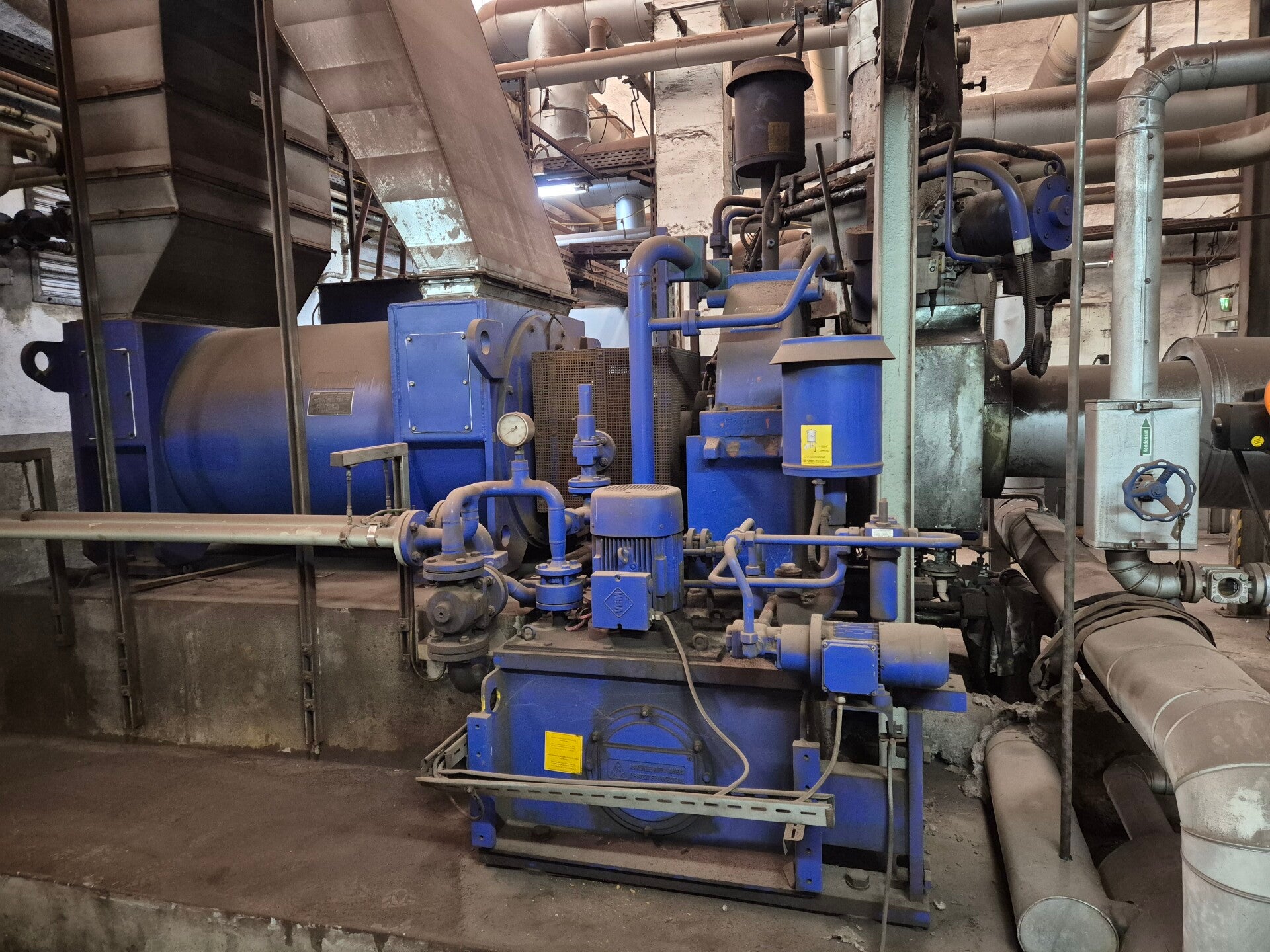

Documented CHP plant combining a 1 MW back-pressure turbine-generator with a 10 MW boiler producing 14.5 t/h steam, plus associated plant auxiliaries.
Lignite-dust fuel system and plant supply boundaries require an equipment-specific review.

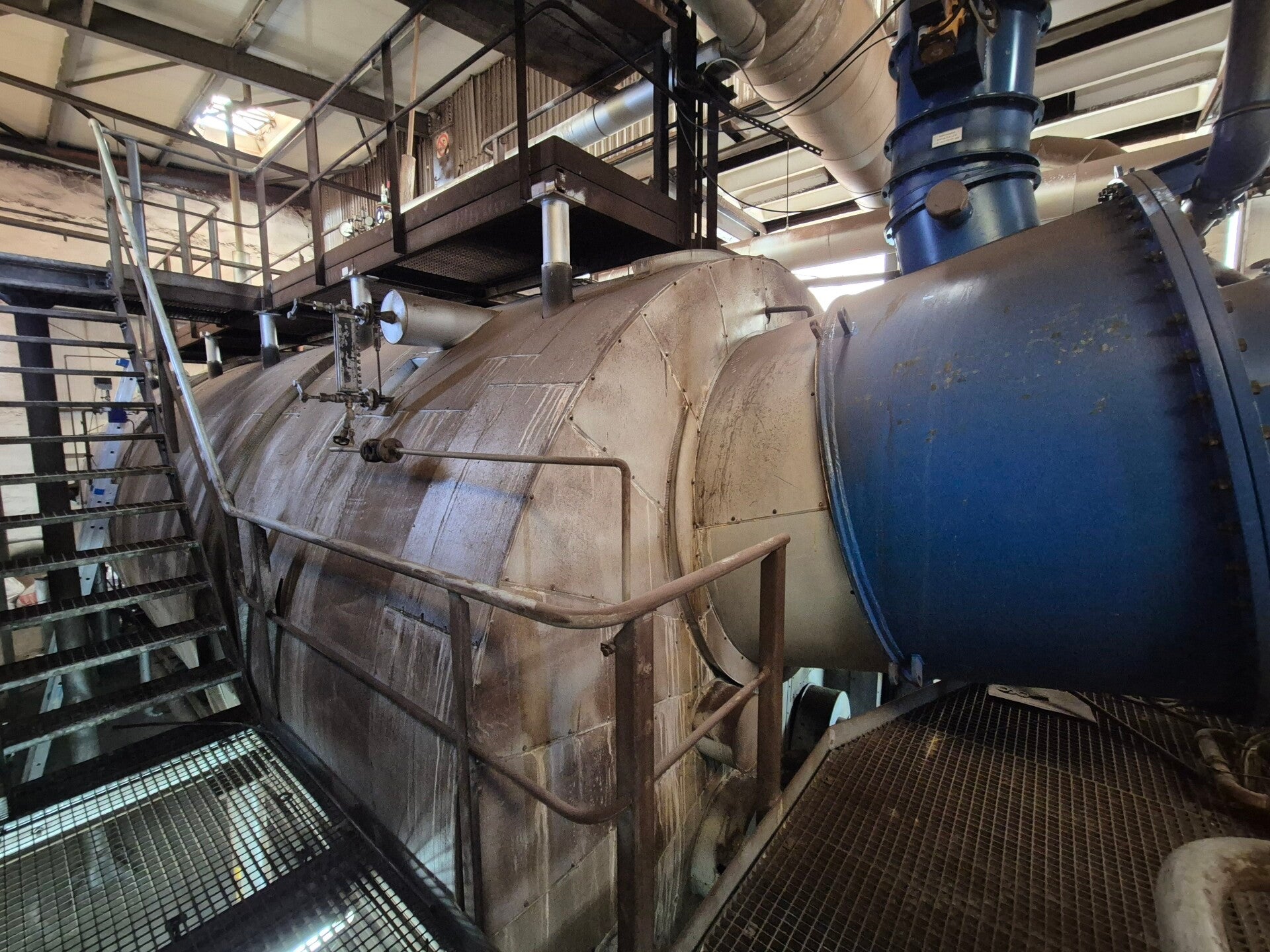

Boiler component of the MR00038 CHP plant. The documented boiler duty is 10 MW with 14.5 t/h steam generation and a lignite-dust firing system.
Part of MR00038. Separate supply scope is available for discussion and must be confirmed.
Standardkessel HD 0601-12 boiler with two Weishaupt dual-fuel burners and a documented economizer. Original manual, drawings and photographs are available for review.
Water treatment, deaerator, controls and remaining auxiliaries are confirmed in the final supply scope.

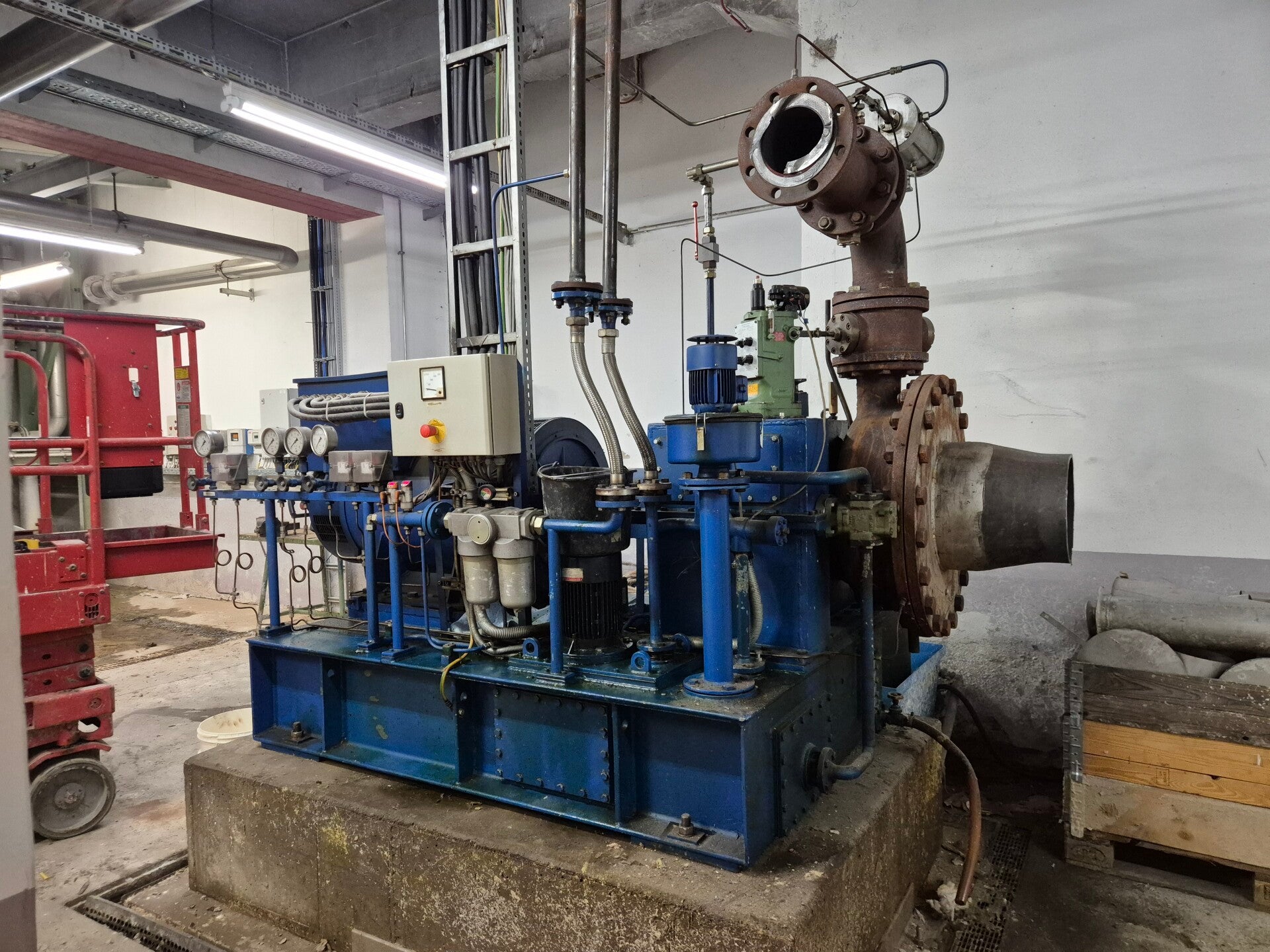

Compact back-pressure turbine-generator package for evaluating power recovery from an industrial steam system, with original technical drawings and photographs.
Inlet pressure differs between datasheet and nameplate; verify the operating limits during technical review.
Off-market equipment opportunities. Current availability, condition, inspection access and final supply boundaries are confirmed before purchase. Supplied photographs document the equipment; they do not establish its present operating status.
Turbine power, boiler duty and steam capacity describe different quantities. Use this overview to shortlist equipment, then review the detailed specifications and your receiving-site requirements.
| Equipment / reference | Year | Documented rating | Steam pressure | Supply scope |
|---|---|---|---|---|
| Siemens SST-300 Steam Turbine Package MR00040 | 2018 | 19.47 / 22.90 MW | 114 / 126 bar(a) | Turbine-generator; separate steam source |
| 1 MW CHP & Steam Turbine Package MR00038 | 2007 | 1 MW turbine / 14.5 t/h steam | 23.5 bar(g) | CHP package; scope to be confirmed |
| Omnical Industrial Steam Boiler MR00038-B | 2007 | 10 MW / 14.5 t/h | 23.5 bar(g) | Component of MR00038; not an extra plant |
| Standardkessel 20 t/h Dual-Fuel Steam Boiler MR00050 | 1996 | 20 t/h steam | 13 bar(g) permissible | Boiler, burners, economizer; auxiliaries to agree |
| ETT FT5 + G280 Steam Turbine Generator MR00051 | 2003 | 265 kW | Datasheet / nameplate verification required | Turbine-generator package |
bar(a) = absolute pressure. bar(g) = gauge pressure. Siemens output and inlet values are normal / maximum documented conditions.
Share your required power or steam capacity, inlet conditions, process-steam demand, country and intended schedule.
Check documents, condition, supply boundaries, auxiliaries, utilities, emissions and receiving-site interfaces.
Define the required inspection, dismantling, match-marking, packing, export and installation support for the equipment concerned.
The section lists a Siemens SST-300 turbine-generator package, a 1 MW CHP plant package, its Omnical boiler component, a Standardkessel 20 t/h gas/oil boiler and an ETT 265 kW back-pressure turbine-generator. The Omnical boiler reference is part of the CHP plant rather than an additional independent plant.
Compare available steam pressure, temperature and flow with the turbine requirements, then assess exhaust/process-steam demand, electrical connection and operating profile. A project-specific steam balance and integration review establish the technical fit.
The Siemens documentation covers a turbine-generator package and requires a suitable steam source to be assessed separately. The 1 MW CHP documentation includes a boiler and plant auxiliaries. The ETT offer is a turbine-generator package. Confirm the final supply list for the selected reference.
MR00038-B identifies the Omnical boiler within CHP package MR00038. Separate supply is discussed on request and depends on confirmation of the agreed plant and component scope.
Request the latest condition information, available records and inspection arrangements for the chosen reference. Current availability, inspection access and final supply boundaries are subject to confirmation and prior sale.
Maria Roboter can define an equipment-specific scope for technical review, dismantling and match-marking, packing and export logistics. Receiving-site installation and integration support can be discussed for the project.
Choose a documented offer or ask us to help you select one. The selection and page link are included in your enquiry automatically.
In the message below, include the required duty, available steam conditions, destination country and installation schedule.
