Used ETT 265 kW Back-Pressure Steam Turbine for Sale

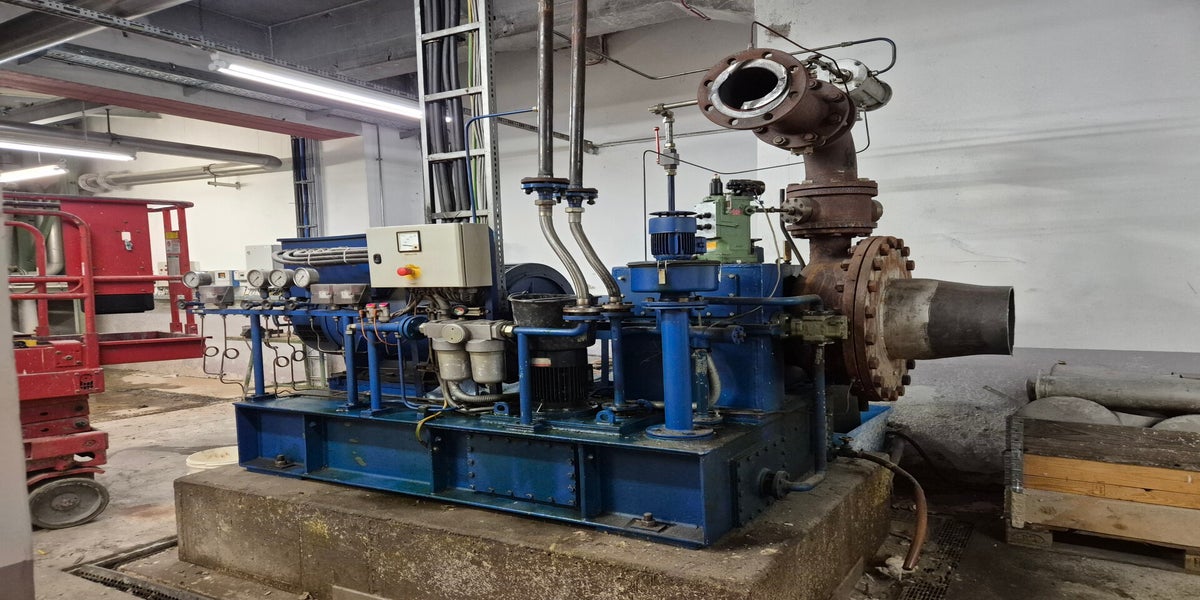

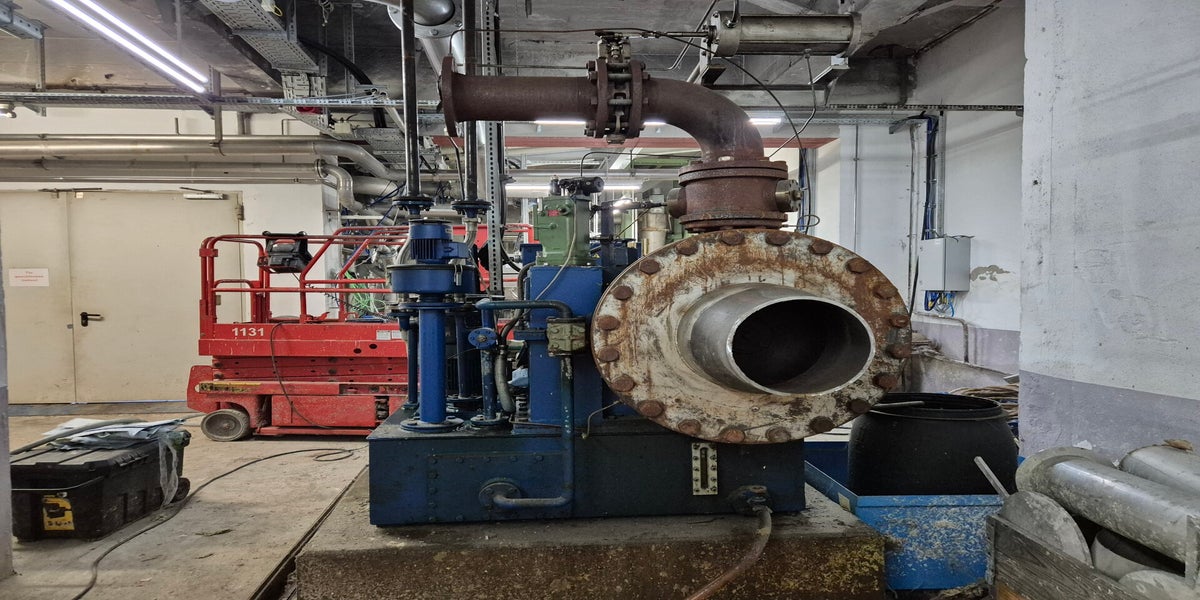

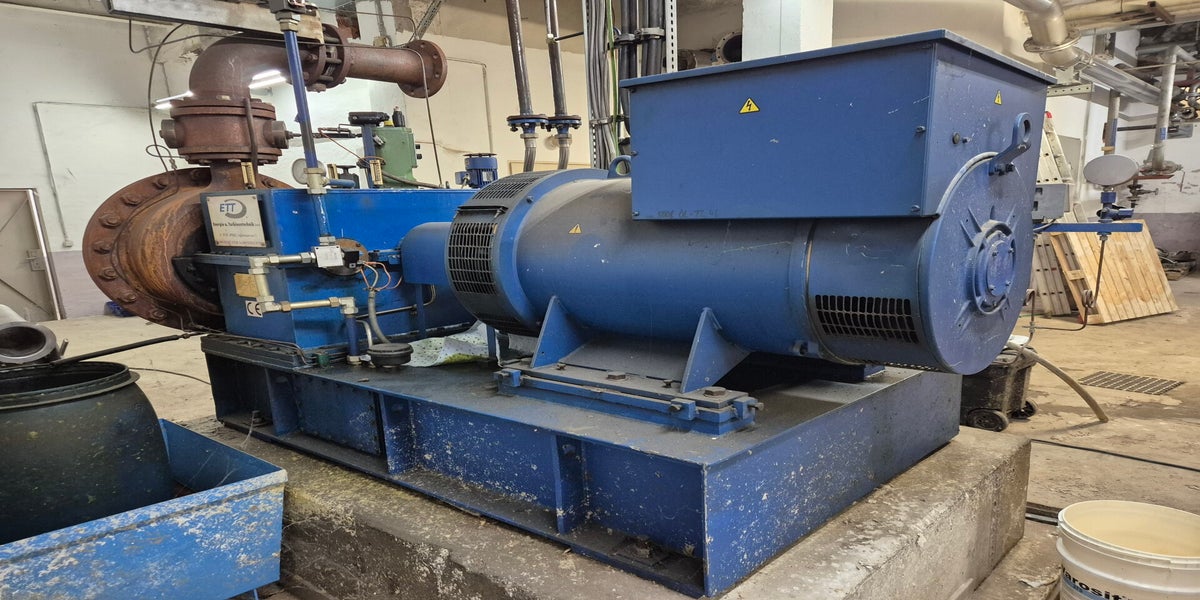

Evaluate a used ETT FT5 steam turbine and Leroy Somer G280 generator package, year 2003, with documented 265 kW output and 400 V / 50 Hz electrical data. The datasheet and nameplate list different inlet pressures, so operating limits require technical confirmation. Request the price, drawings and confirmed scope for your steam system.
265 kW Output
European industrial steam turbine generator package for energy recovery and cogeneration applications.Complete Package

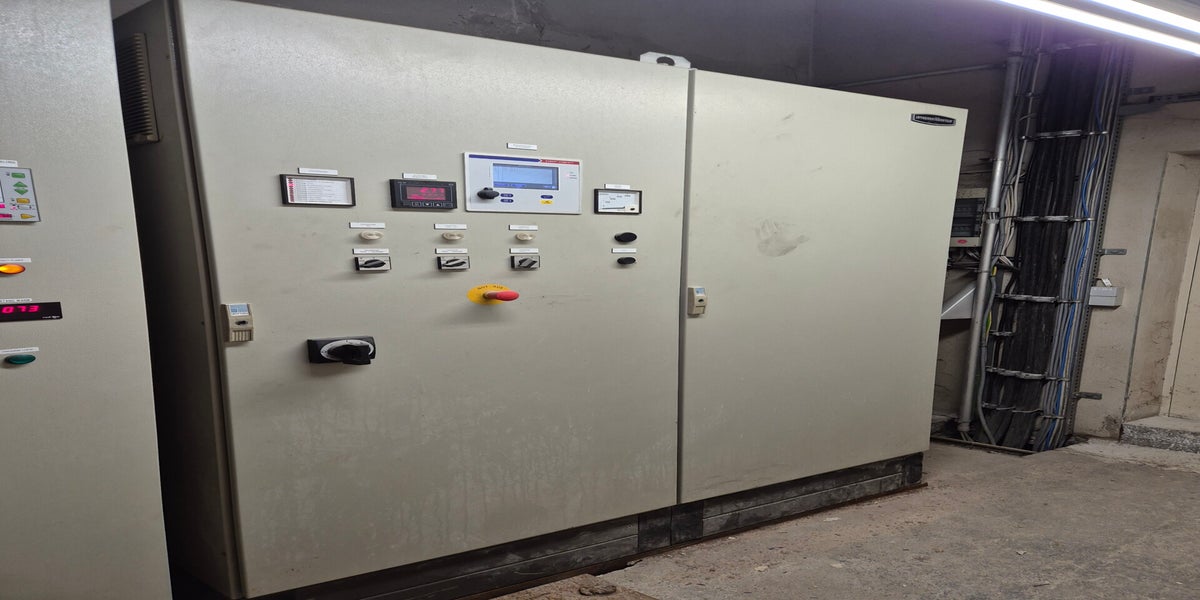

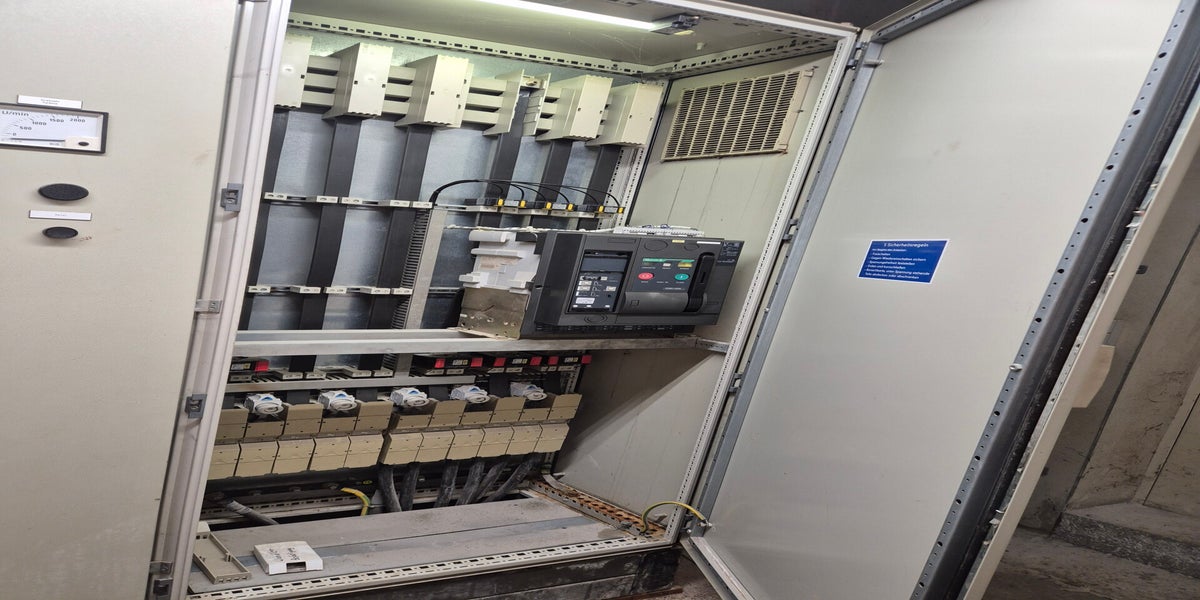

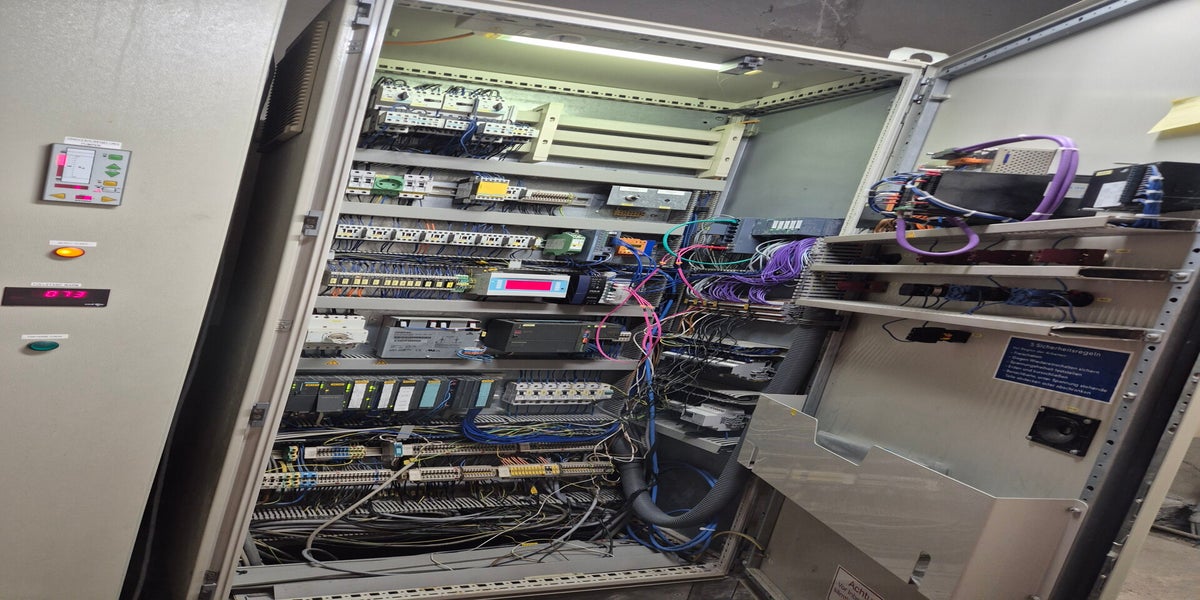

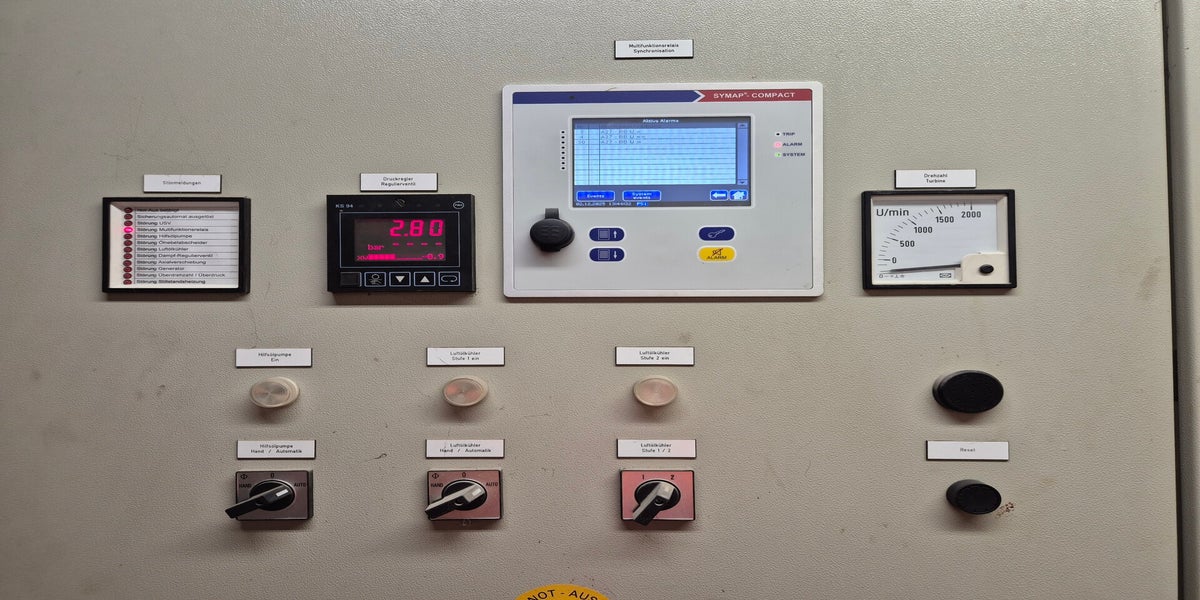

Steam turbine, Leroy Somer generator, gearbox, lubrication system, control cabinet and synchronization equipment.Worldwide Export
Professional dismantling, packing, logistics and worldwide delivery through Maria Roboter GmbH.Engineering Documents

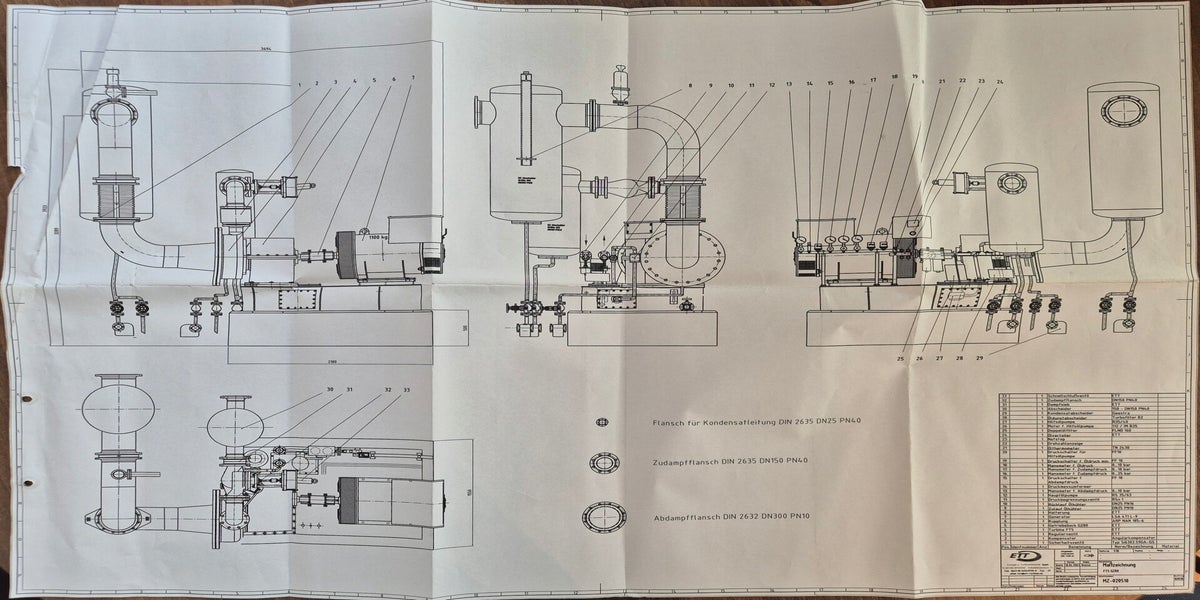

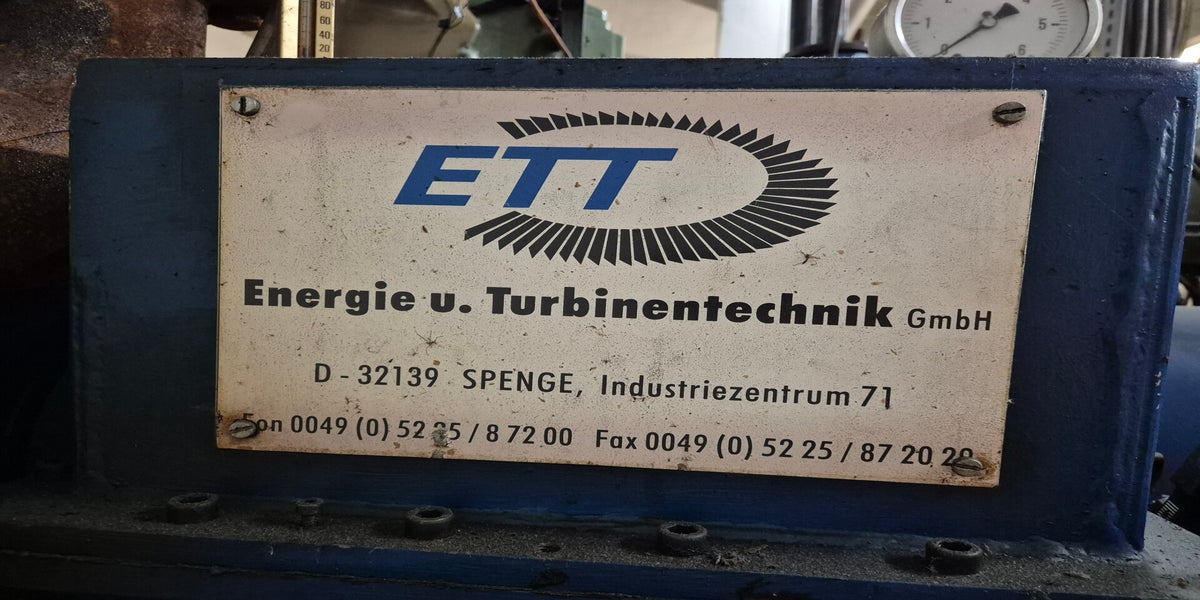

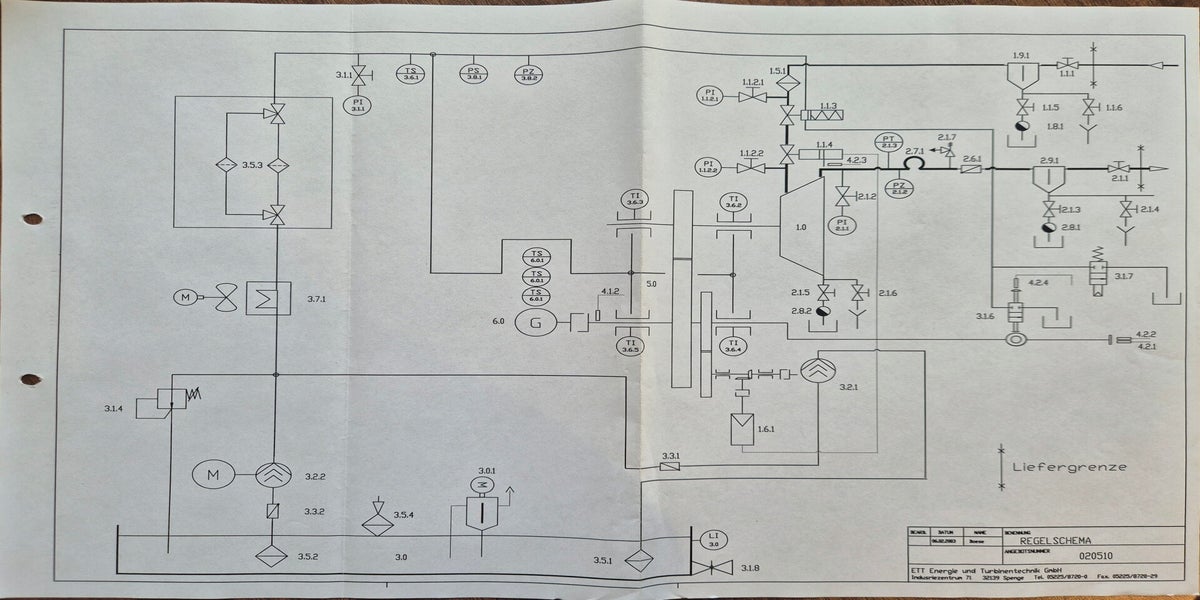

Technical datasheets, layout drawings, control scheme and additional documentation available upon request.| Manufacturer | ETT Energie- und Turbinentechnik GmbH |
| Year of Manufacture | 2003 |
| Turbine Type | Back Pressure Steam Turbine |
| Electrical Output | 265 kW |
| Generator | Leroy Somer |
| Voltage | 400 V |
| Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Inlet Steam Pressure | 11.5 bar(abs) |
| Steam Temperature | 186°C |
| Exhaust Pressure | 5 bar(abs) |
| Steam Consumption | 44.23 kg/kWh |
| Lubrication | Forced Oil Lubrication |

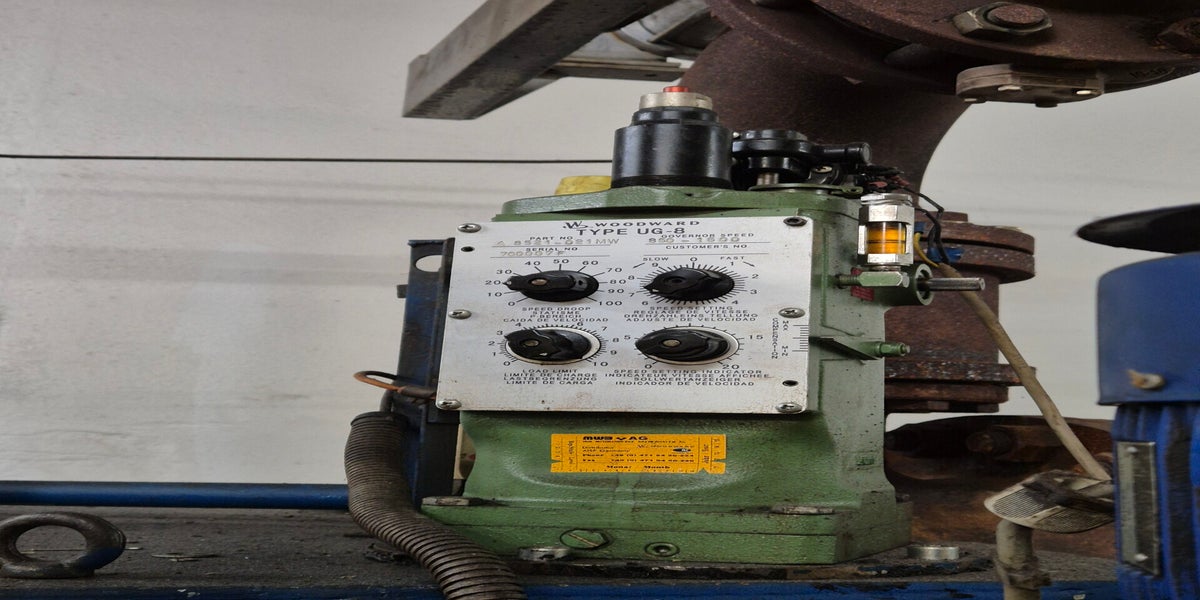

| Governor | Woodward UG8 |
| Status | Current availability and condition to be confirmed |
| Inspection arrangements | By arrangement; current status on request |

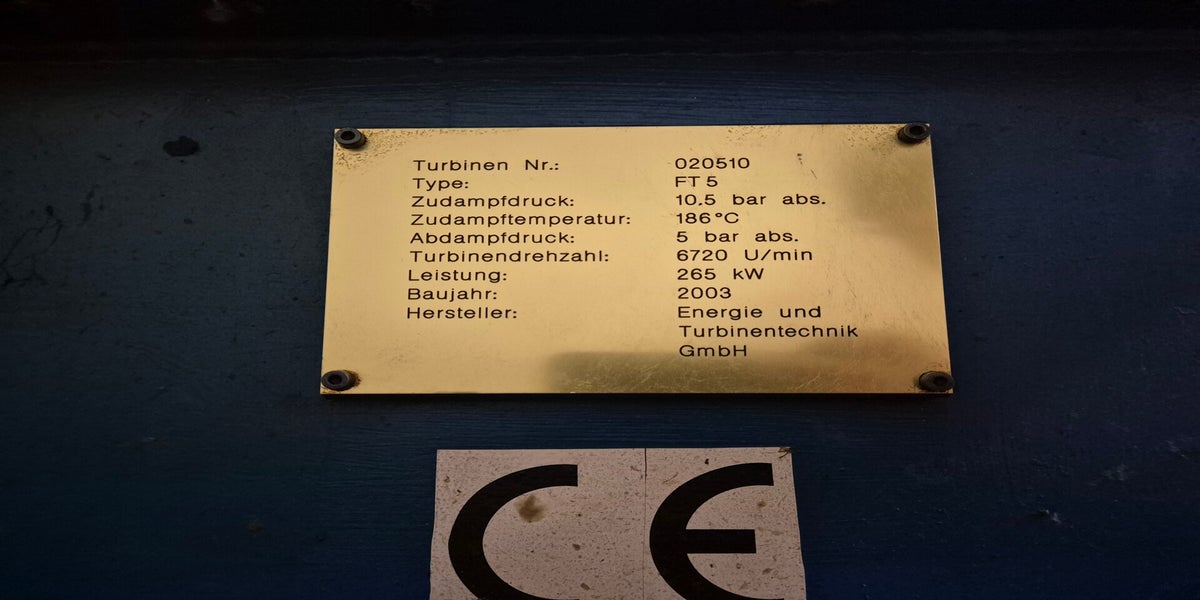

Pressure verification: The technical datasheet states an inlet pressure of 11.5 bar(abs), while the turbine nameplate states 10.5 bar(abs). This difference must be confirmed during the technical review before purchase.
Equipment was offered as shut down. Current condition, availability and inspection arrangements are subject to confirmation and prior sale.
Request equipment details
Equipment reference: MR00051 · ETT FT5 + G280 Steam Turbine Generator — 265 kW
