Energy equipment · Technical selection
Standardkessel 20 t/h Dual-Fuel Steam Boiler

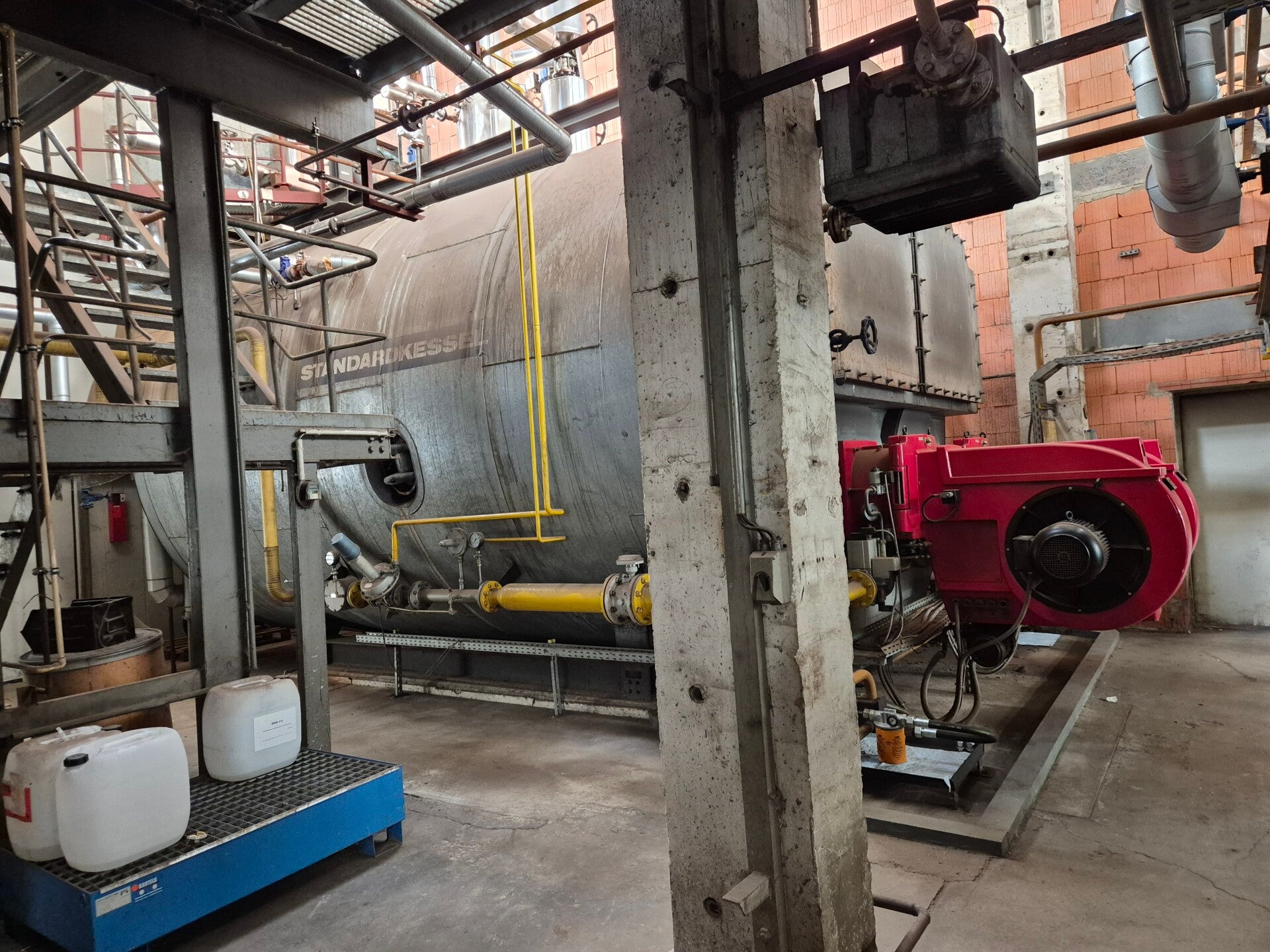

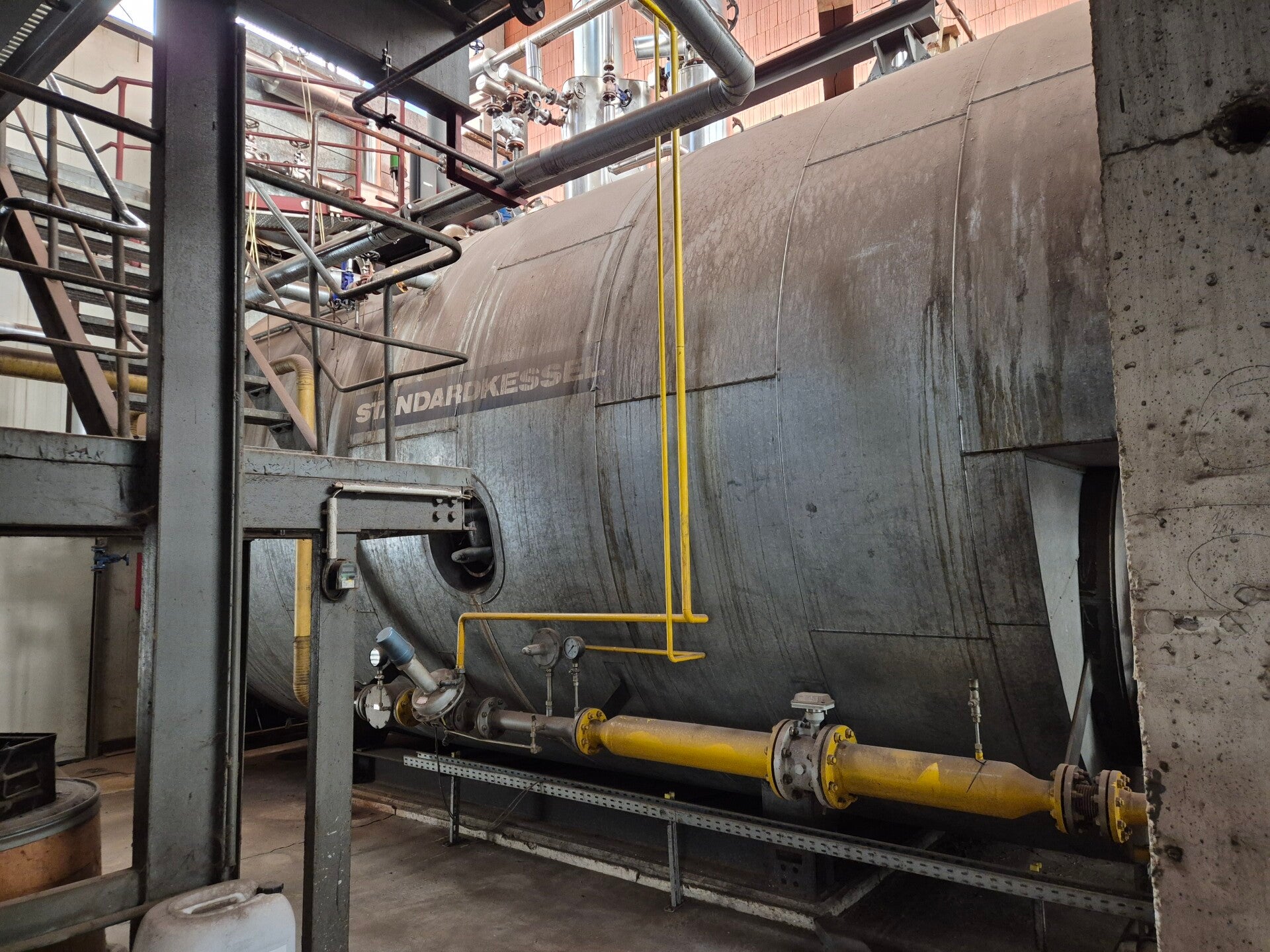

Used Standardkessel industrial steam boiler with 20 t/h nameplate capacity, a permissible pressure of 13 bar and gas/oil dual-fuel firing. Original technical records, layout drawings and photographs are available for project review.
Off-market equipment opportunity. Availability, inspection access and final supply scope are subject to confirmation and prior sale. Boiler, dual-fuel burners and economizer are documented. Deaerator, water treatment, controls and remaining auxiliaries must be confirmed in the agreed scope of supply.
Documented technical specifications
| Equipment reference | MR00050 |
|---|---|
| Manufacturer | Standardkessel Duisburg |
| Model | HD 0601-12 |
| Serial number | 20542 |
| Year | 1996 |
| Permissible steam capacity | 20 t/h |
| Permissible operating pressure | 13 bar gauge |
| Heating surface | 395 m² |
| Fuels | Natural gas H / light fuel oil EL |
| Burners | 2 × Weishaupt RGL 70/2-A NR |
| Firing capacity · operating manual | 13,860 kW (operating manual) |
| Maximum gas consumption · operating manual | Up to 1,386 Nm³/h (operating manual) |
| Maximum oil consumption · operating manual | Up to 1,172 kg/h (operating manual) |
| Maximum gas pressure before regulator | 4 bar |
| Economizer | Installed; documented in the historical emissions report |
| Condition / inspection | Offered as shut down; current condition and inspection arrangements to be confirmed |
| Operating hours / current statutory certification | To be confirmed; historical documents do not establish current certification |
| Supply boundaries | Boiler, burners and economizer documented; controls, water treatment, deaerator and other auxiliaries to be agreed |
Technical file
- Original boiler data / operating manual
- Installation / arrangement drawings
- P&ID / process flow diagram
- Historical emission measurement report
- Original photographs
Project suitability
Review the required steam pressure and demand, available natural gas or fuel oil, burner and emissions requirements, water treatment, civil works and boiler-house interfaces. Current inspection and receiving-site requirements must be established before relocation.
Questions about this equipment
What steam capacity and pressure are documented?
The original boiler data records 20 t/h permissible steam generation and 13 bar permissible operating pressure. Project suitability requires a review of your required steam conditions and site interfaces.
Which fuels can the boiler use?
The operating manual specifies natural gas H and light fuel oil EL with two RGL 70/2-A NR dual-fuel burners. Burner condition, fuel supply and emissions requirements must be reviewed for the destination site.
Is the boiler currently in production?
The owner offered the equipment as shut down. Request the latest condition, inspection arrangements and available operating records before planning purchase or relocation.
Does the offer include water treatment and a deaerator?
The boiler, burners and economizer are documented. Water treatment, deaerator, PLC and other auxiliaries are confirmed individually in the final technical and commercial scope.
Can Maria Roboter arrange dismantling and export?
Maria Roboter can define an equipment-specific scope covering technical review, dismantling and match-marking, packing and export logistics. Installation and integration support can be discussed for the receiving site.
Request technical details
MR00050 · Standardkessel 20 t/h Dual-Fuel Steam Boiler
Use the enquiry form below. Your equipment reference is included automatically. Tell us the destination country, required duty and preferred installation schedule.
