V-FOLD HAND-TOWEL LINE | 2,750 MM
V-fold / interfold hand-towel converting line with a working width of 2,750 mm. Inspection can be arranged through the end of 2026, subject to confirmed availability and access. Current condition and final supply scope will be confirmed before inspection.
For relocation and operation outside Europe only.
TECHNICAL DATA
Year: 2003
Product: V-fold folded tissue products
Working width: 2,750 mm
Machine speed: up to 155 m/min
Sheet sizes: 23 × 23 cm and 25 × 23 cm
Current pack count: 160–250 sheets
Reported average production: 30–34 tonnes/day
Parent roll diameter: 2,000 mm; potential increase to 2,200 mm after technical optimization, subject to engineering review
INSTALLED LINE SCOPE

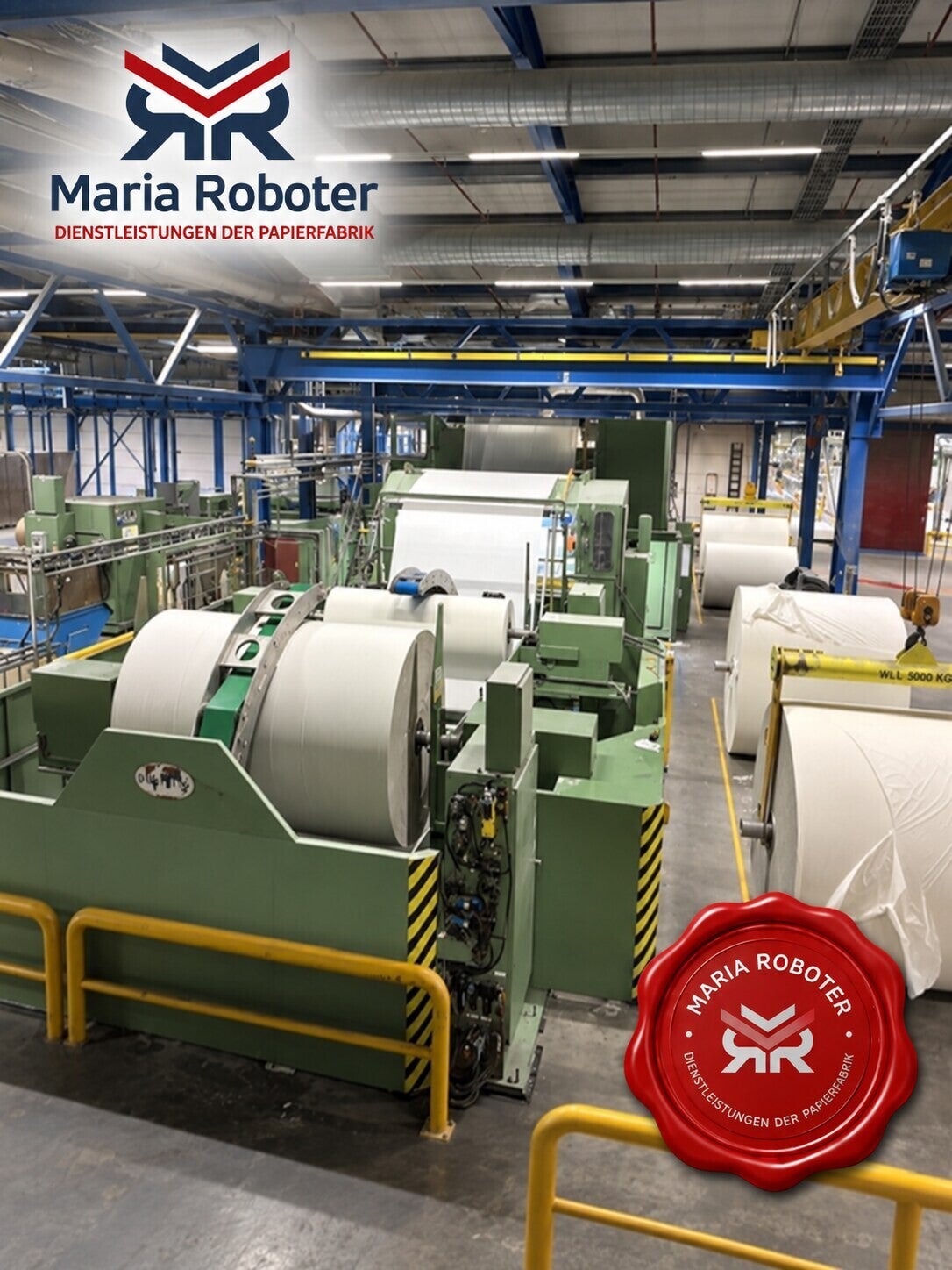

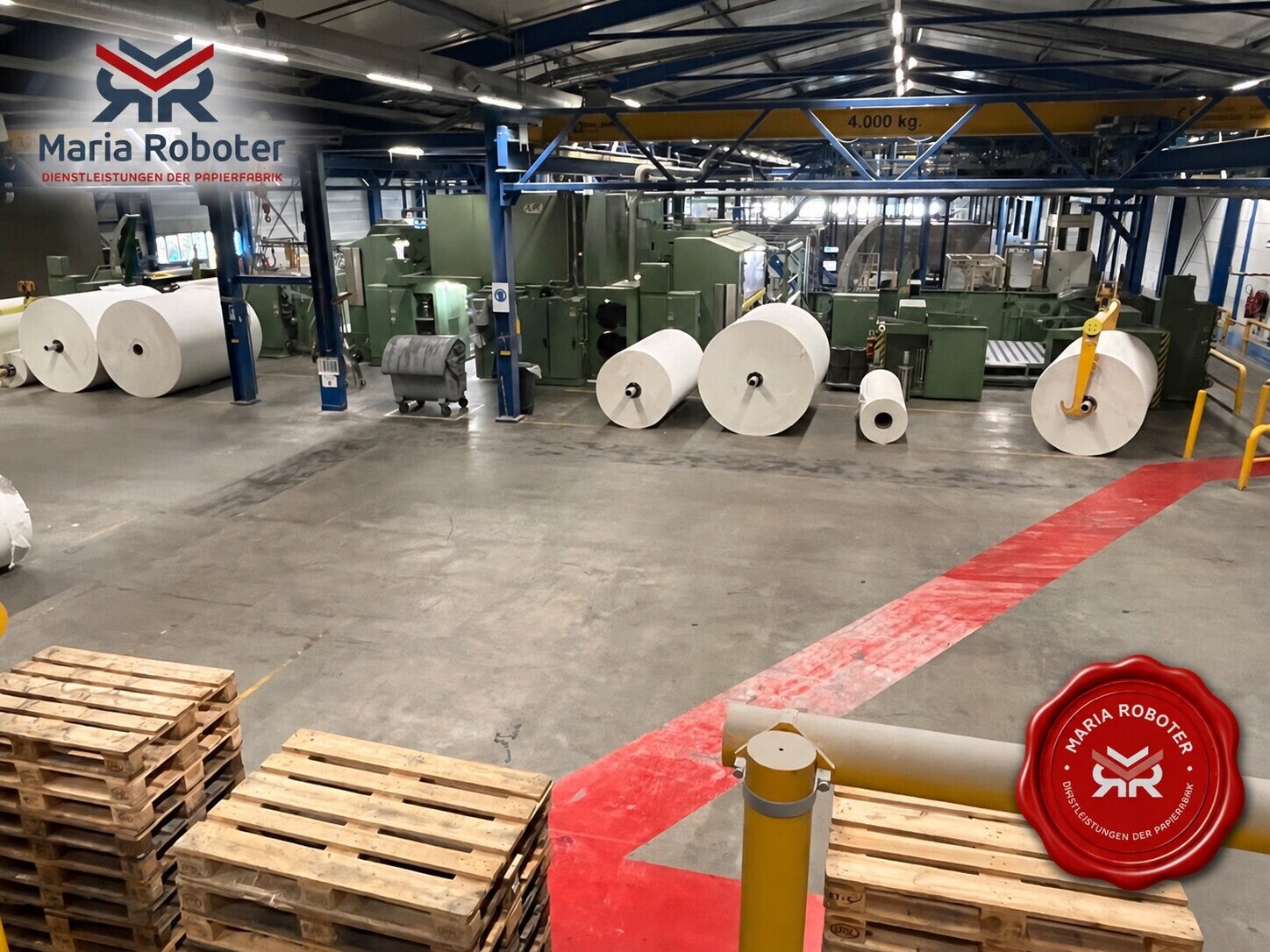

Visible installed equipment includes jumbo-roll unwind stations, web-guiding and drive sections, printing equipment, converting and folding modules, counting and discharge sections, vacuum systems, electrical cabinets and an overhead crane. Final scope is subject to inspection and written confirmation.
Evaluate this V-fold line for your hand-towel project
This used V-fold converting line can be reviewed by folded hand-towel producers planning additional capacity or a relocated production line. Start with the finished sheet, pack count, parent tissue, required output and destination, then compare the documented machine configuration with the proposed installation.
Product formats and production figures
The listed sheet formats are 23 × 23 cm and 25 × 23 cm, with a reported pack count of 160–250 sheets. The listed machine speed is up to 155 m/min and reported average production is 30–34 tonnes/day. Assess the speed and production figures against the intended tissue, product format, pack configuration and operating conditions.
Define the supply boundary before purchase
Request an itemised equipment list identifying the converting and folding sections, unwinding equipment, counting and discharge, vacuum systems, electrical cabinets and any packaging or other auxiliaries included in the offer. The final supply scope and any separately agreed services are confirmed in writing.
Can the line be relocated to my country?
The line is offered for relocation and operation outside Europe only. Include your intended installation country when requesting the technical file so destination eligibility can be checked at the start of the enquiry.
Can we inspect the installed equipment?
Inspection is by prior arrangement and subject to current availability and access. Confirm the current operating status and the inspection mode before planning travel. Available photographs, video and technical records can support your team's initial review.
What should our technical team request?
Ask for the available layout, utilities and drive information, component list, condition records and inspection arrangements. Share your required sheet sizes, pack counts, output, destination and project timing to help define the next technical checks.
Maria Roboter GmbH can coordinate technical review and relocation planning within an agreed project scope. You can also compare the current tissue converting and packaging offers.
V-fold converting — illustrative guide
Concept illustrations only. Actual line photographs and inspection details are available on request.
