TMC X-BUNDLER – Used Tissue Roll Bundling Machine
SECONDARY ROLL PACKAGING · INDIVIDUAL MACHINE
Used TMC X-BUND automatic bundler for grouping bathroom-tissue and household-towel roll packs into an outer bundle. Review the documented bundle configurations, electrical data and reference layout below, then send your product requirements for a technical fit assessment.
Request Technical File & Quotation · View Tissue Converting Equipment
Technical specifications
- Manufacturer: TMC S.p.A., Italy — IMA Group
- Model: X-BUND / X-BUNDLER
- Application: Automatic secondary bundling of tissue roll packs
- Electrical supply: 460 V · 60 Hz · three-phase + protective earth (3 + PE)
- Full-load current: 50 A
- Largest-load current: 11.5 A
- Reference dimensions, L × W × H: 9,813 × 3,046 × 2,406 mm
- Reference infeed / discharge height: 780 mm / 1,170 mm
- Year of manufacture: To be confirmed
- Installed power, weight and compressed air: To be confirmed
- Conveyors, format parts, spares and manuals: Final included scope to be confirmed in the quotation
Dimensions refer to the available reference layout. Door opening, maintenance access and installation clearances require additional space. Confirm the supplied arrangement and transfer positions before installation planning.
Documented bundle configurations
- 4 packs of 12 rolls: 48 rolls per bundle — up to 16 bundles/min
- 5 packs of 6 rolls: 30 rolls per bundle — up to 16 bundles/min
- 48 individually wrapped rolls: 48 rolls per bundle — up to 5 bundles/min
- 32 individually wrapped rolls: 32 rolls per bundle — speed to be confirmed
These are reference configurations and calculated speeds from the available format documentation. Actual output depends on product dimensions, packaging material, line arrangement, installed tooling and production trials. Listed examples do not establish that every set of format parts is included.
Equipment scope and integration

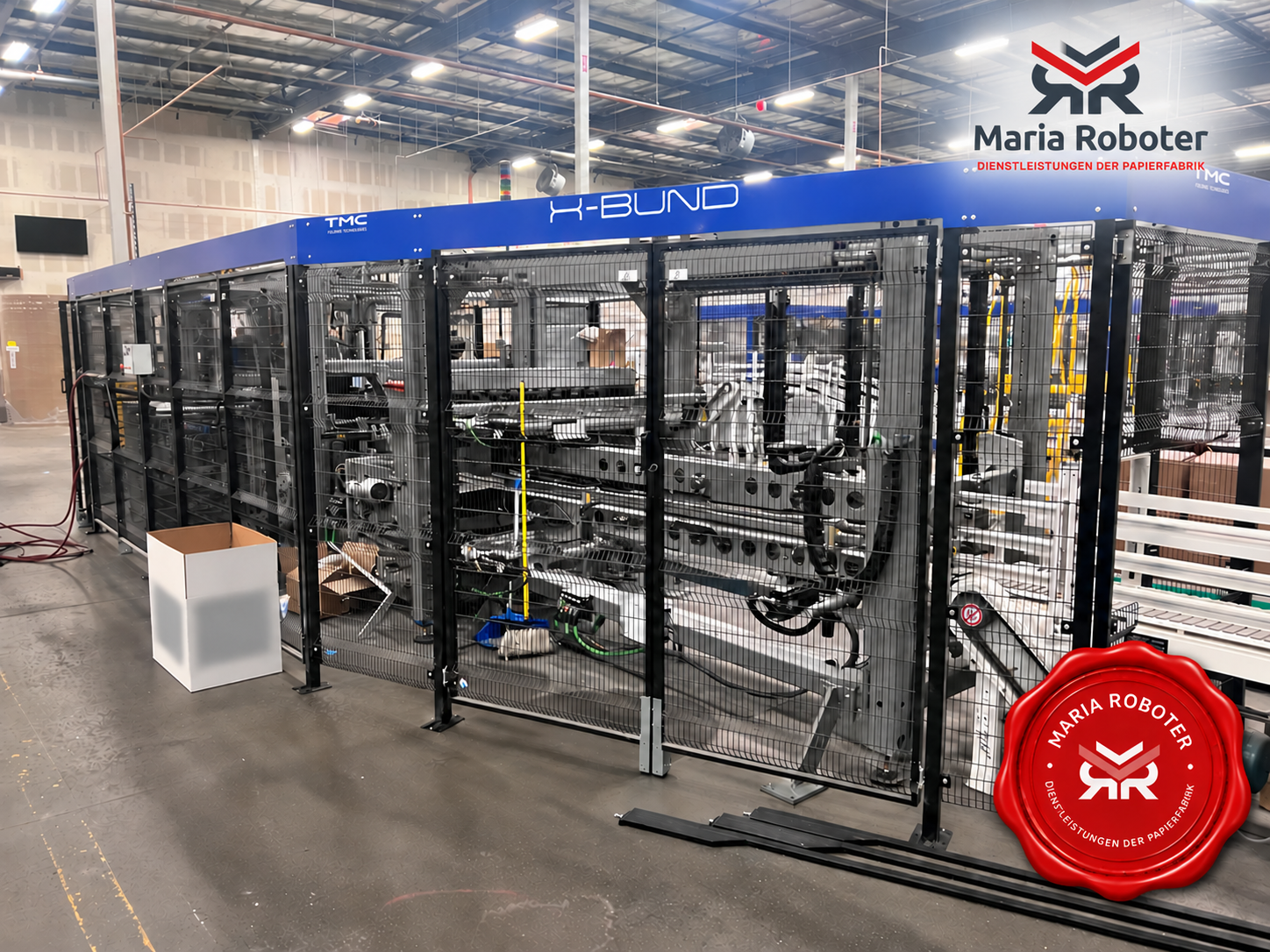

The available material includes a machine photograph, electrical data, format documentation and a reference layout. Current operating condition, run hours, installed formats, conveyor scope, controls, available backups and restart requirements need confirmation. Request the available technical file and inspection arrangements for your project.
For a fit review, provide roll diameter and height, rolls per primary pack, packs per outer bundle, pack dimensions, required bundles per minute, packaging material and upstream/downstream conveyor details. Electrical conversion and any additional change parts must be assessed separately.
Frequently asked technical questions
What does the X-BUNDLER do?
It groups tissue roll packs into a secondary outer bundle for downstream handling. The reference documentation covers bathroom-tissue rolls and household-towel rolls.
What production speed can I expect?
The documented examples range from 5 to 16 bundles per minute, depending on configuration. Product samples, material specifications, installed tooling and line conditions are needed before a production commitment can be made.
Can it operate on a 400 V / 50 Hz supply?
The documented machine supply is 460 V / 60 Hz, three-phase + PE. A qualified electrical and controls review is required to determine conversion requirements, cost and performance.
Can it package facial-tissue stacks directly after a log saw?
The available documentation establishes secondary roll bundling. Direct primary wrapping or cartoning of facial-tissue stacks is not documented for this machine.
Are format parts and conveyors included?
The exact installed formats, change parts, conveyors, manuals and spares will be defined in the confirmed supply scope. Send your required bundle format so these items can be checked.
What space is required?

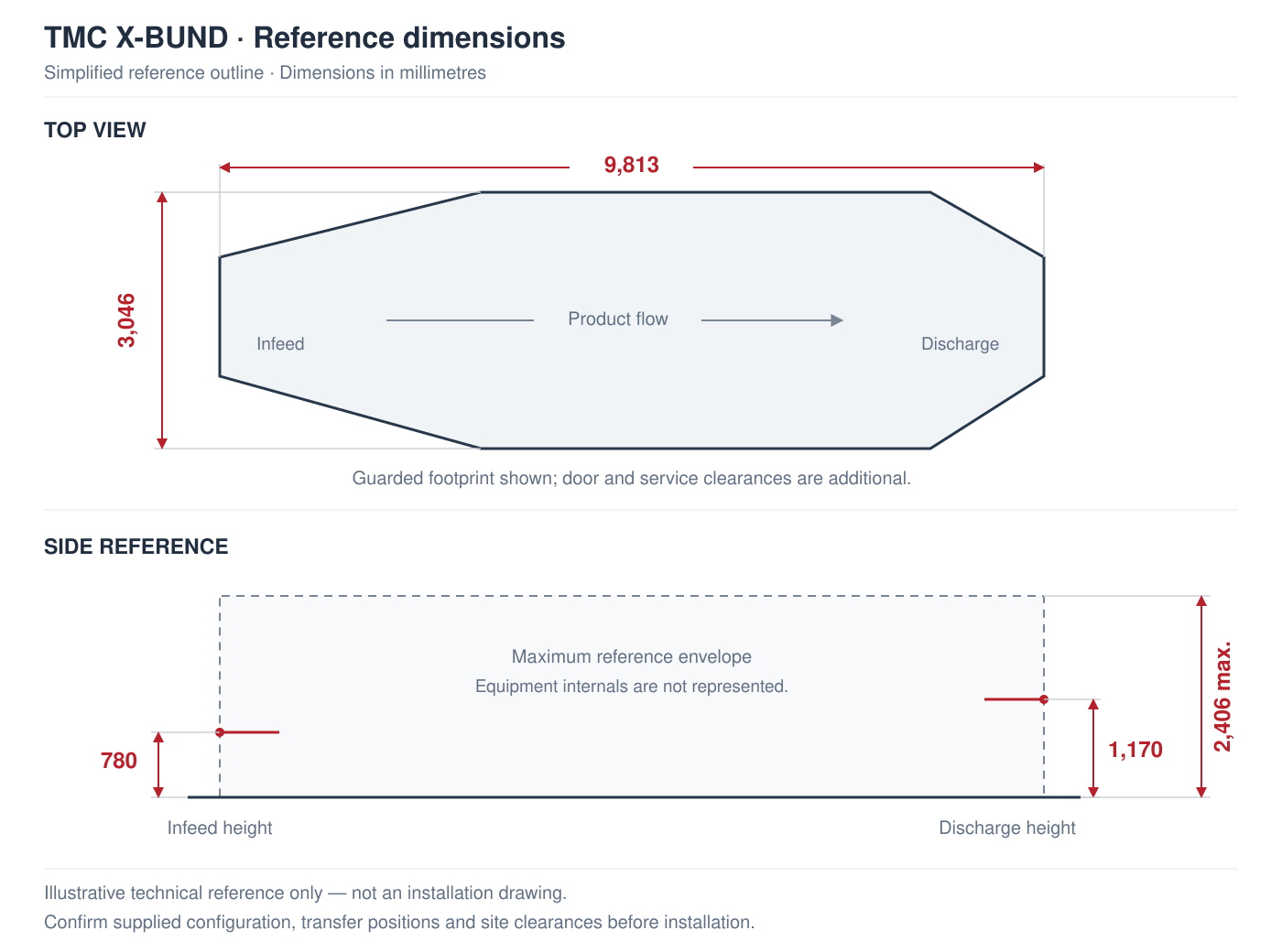

The reference overall envelope is 9,813 × 3,046 × 2,406 mm. Allow additional space for doors, service access, utilities and connected conveyors. The schematic is an engineering reference; the final installation arrangement must be verified.
Can Maria Roboter support inspection and relocation?
Maria Roboter GmbH can coordinate technical evaluation, inspection, dismantling where required, match-marking, export packing, transport and integration support according to the agreed project scope.
Request Technical File & Quotation
Interested in the TMC X-BUNDLER? Use the form below to request the available technical documents, confirmed equipment scope, inspection options and a quotation.
In your enquiry, include the product and pack dimensions, desired bundle configuration, required output, electrical supply, destination and project timing. Our team will review suitability and the information needed for the next step.
Availability, operating condition, performance and final supply scope are subject to written confirmation.
