THIESSEN Pallet Packing Line
Built 1986 · Overhauled 2014 · Manual pallet infeed
Select a photograph to request details for MR100151.
Application highlights
- Combines stack alignment, labelling, wrapping and outfeed equipment in one listed line.
- Siemens S7 control system dated 2014 and an ABB IRB6640 six-axis robot dated 2013.
- Defined maximum pallet footprint of 1,200 × 800 mm, with manual pallet infeed.
For palletized paper-stack packing and sheet-finishing logistics. Stack dimensions, weight, wrapping requirements and required throughput must be checked for the intended application.
- Manufacturer
- THIESSEN
- Equipment
- Pallet packing line
- Year of manufacture
- 1986
- Overhaul
- 2014
- System control
- Siemens S7, installed in 2014
- Maximum pallet format
- 1,200 × 800 mm
- Pallet infeed
- Manual
- Robot
- ABB IRB6640, six-axis, 2013
- Robot serial number
- 6640-104425
- Stack-centring/alignment unit
- REKER P281, 2013, serial 4300
- Conveyor widths, as listed
- 900 mm and 1,300 mm
- Label printing stations
- 2
- Shrink-wrapping systems
- 2 × MSK281, 1985, natural-gas heating
- Shrink tunnel
- Schwank SM I 18-L, 1991, gas-fired, 140 kW, serial 18487
Full listed configuration
- Two-fold roller conveyor and Hywema scissor lift.
- Transfer, alignment and cross-transport equipment.
- Manual pallet loading station and lifting unit.

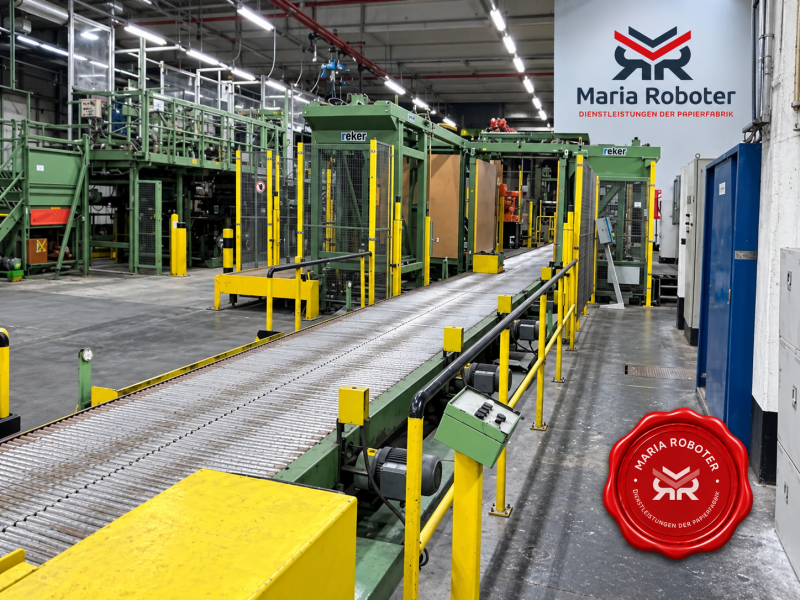

- Stack centring and vertical alignment.

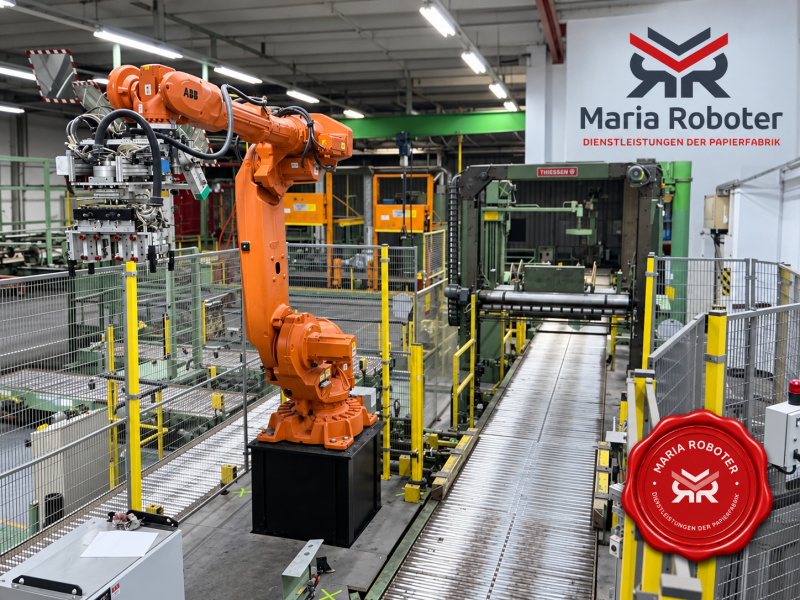

- ABB robotic equipment, control cabinet and touch panel.
- Two label printing stations with automatic feeding and glue application.
- Horizontal wrapping unit and vertical pallet wrapping equipment.
- Nütro turntable.
- Roller and plate conveyors with extraction equipment.
- Two natural-gas-heated MSK281 shrink-wrapping systems with ring burners.
- Schwank gas-fired shrink tunnel.
- Stack press and outfeed conveyors, including four roller conveyors, each 1,300 mm wide × 2,000 mm long.
