USED 5,150 MM CONTAINERBOARD PAPER MACHINE
5,150 MM | 380 TPD | COMPLETE OCC LINE
5,150 mm working width, approx. 380 TPD, 90–200 gsm, Testliner / Fluting / Brown Containerboard. Single Ply Fourdrinier with Top Former, 1,000 m/min design speed, 650 m/min operating speed. Major upgrades include Shoe Press, Bellmer Headbox 2018, ABB QCS, Bellmer Rewinder 2019 and Complete OCC Line.
Technical specifications
| Machine configuration | Single-ply Fourdrinier with top former |
|---|---|
| Working width | 5,150 mm |
| Listed production capacity | Approximately 380 tonnes/day |
| Paper grades | Testliner, fluting and brown containerboard |
| Basis weight range | 90–200 g/m² |
| Design speed | 1,000 m/min |
| Listed operating speed | 650 m/min |
| Press equipment | Shoe press |
| Headbox | Bellmer headbox, 2018 |
| Quality control | ABB QCS |
| Rewinder | Bellmer rewinder, 2019 |
| Stock preparation | Complete OCC line listed; final included equipment to be confirmed |
Define the paper-machine and OCC supply scope
Review the paper machine and the associated stock-preparation equipment as one project, with an itemised equipment list identifying the agreed supply boundary. Use the following checklist when requesting the technical file.

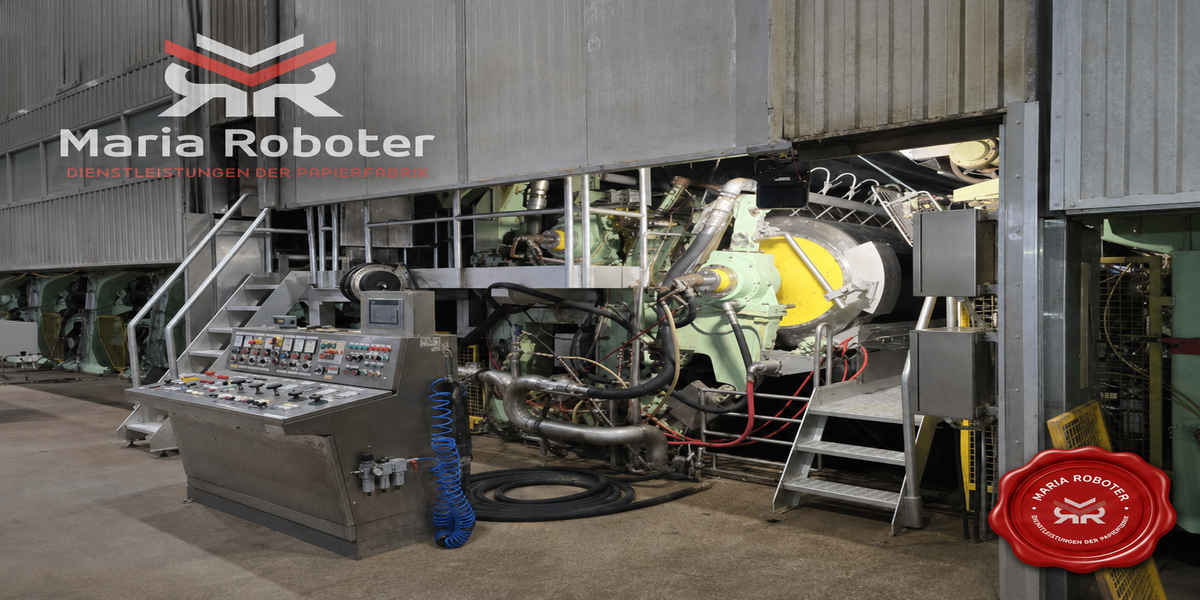

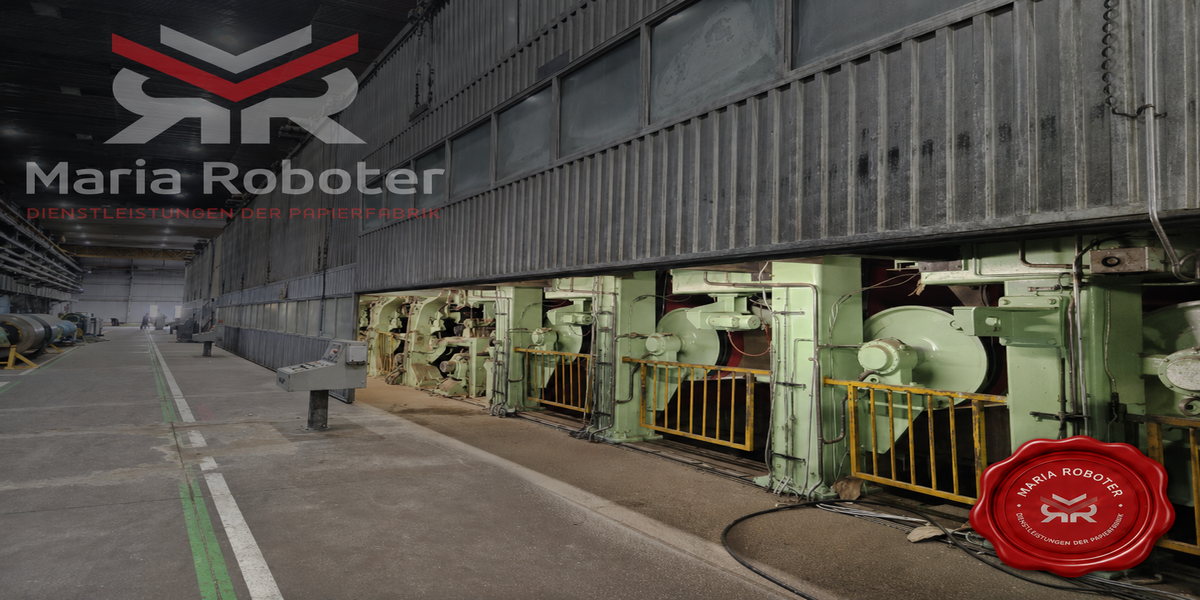

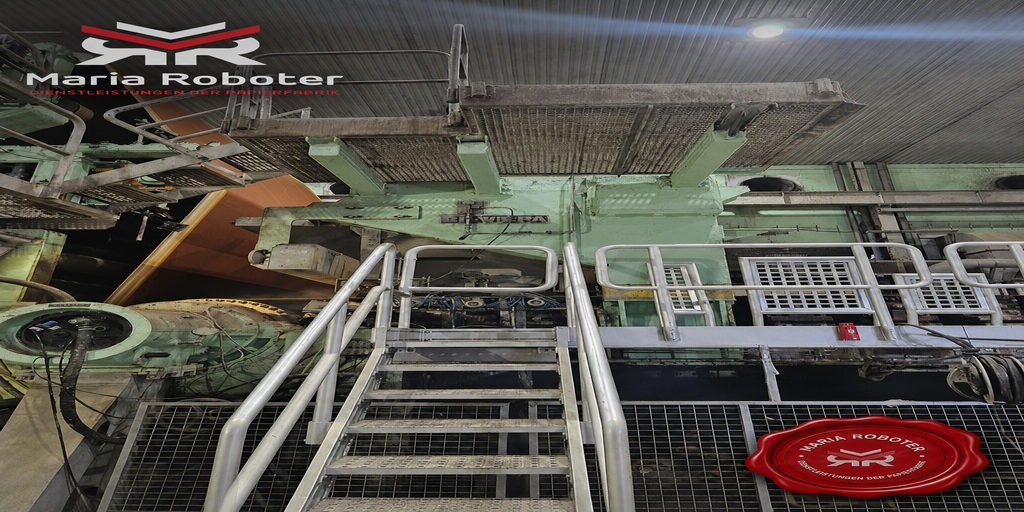

| Paper-making sections | Listed: single-ply Fourdrinier with top former, shoe press and Bellmer headbox from 2018. Review: the current section-by-section equipment list, condition and interfaces. |
|---|---|

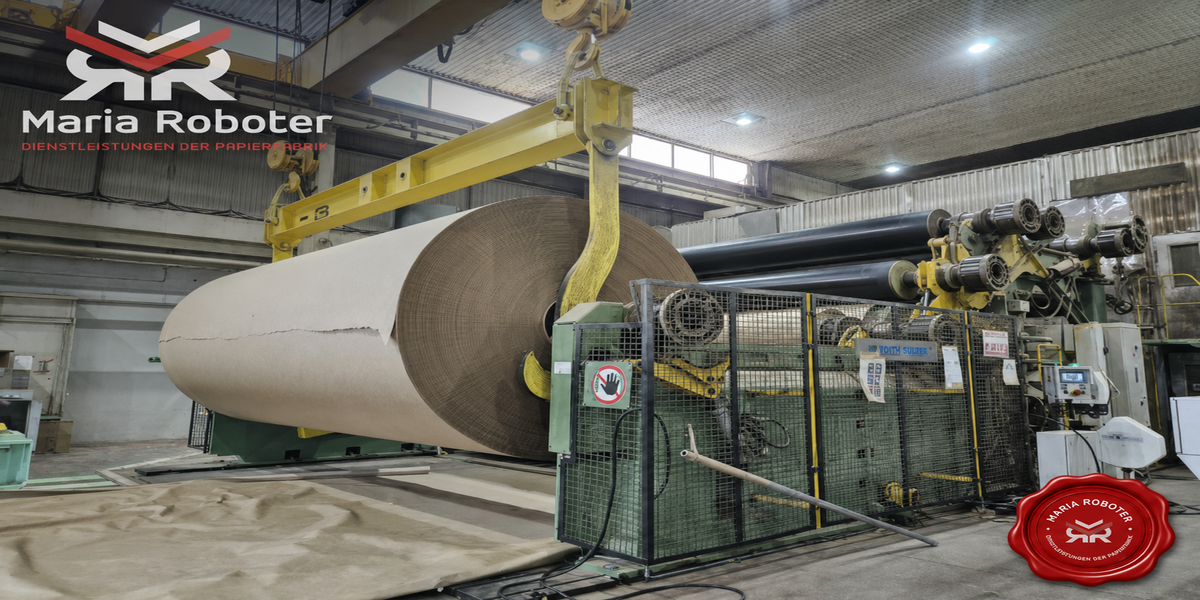

| Reel finishing and quality control | Listed: Bellmer rewinder from 2019 and ABB QCS. Review: the included controls, field equipment, software and integration requirements. |

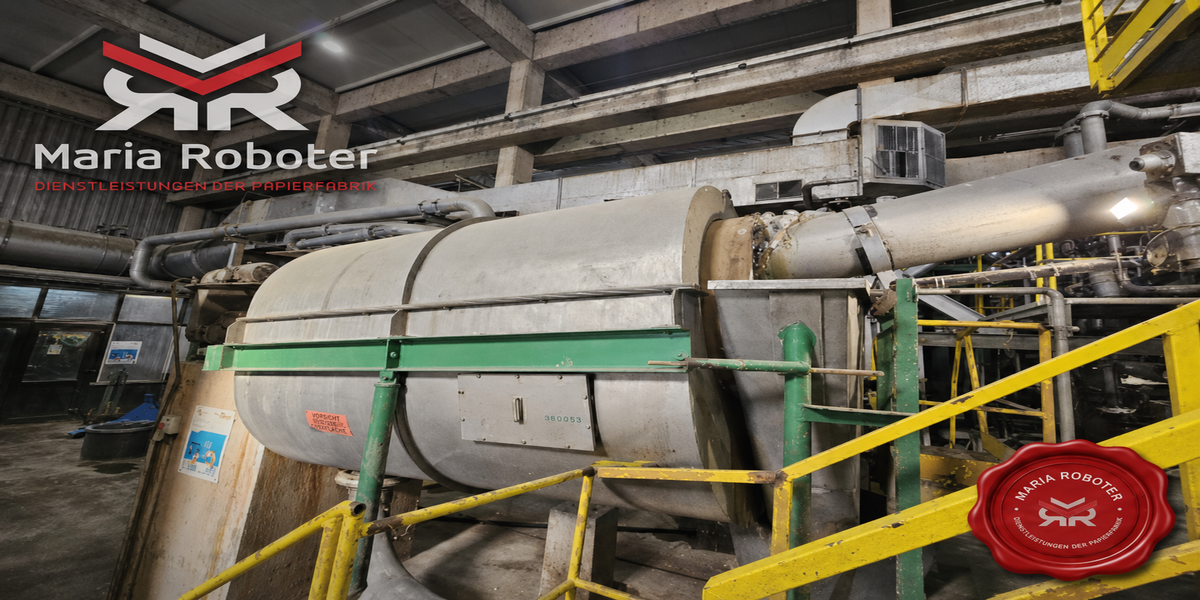

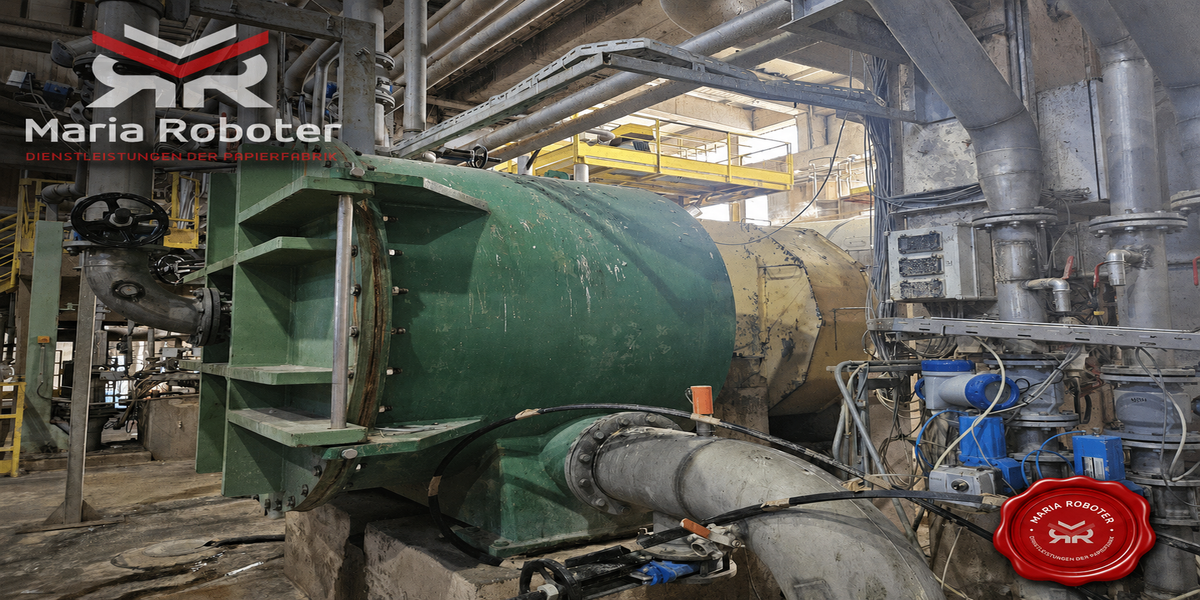

| OCC stock preparation | Listed: a complete OCC line. Review: the itemised process equipment, auxiliaries and the final boundary between the OCC line and paper machine. |
| Utilities and receiving-site requirements | Request the available utility and layout information. Check the receiving site's space, foundations, power, water and steam requirements against the selected equipment. |
| Technical documents | Request a document list covering the available equipment records, drawings, controls information and operating data. The technical file should identify the documents available for each part of the package. |
| Removal, delivery and restart support | The quotation defines the agreed equipment, dismantling and match-marking, packing, transport interfaces and any separately agreed installation or commissioning support. |
Check the machine against your production plan
The listed 1,000 m/min design speed, 650 m/min operating speed and approximately 380 tonnes/day describe different reference figures. Compare them with the intended grade, basis weight, furnish and documented operating conditions.
- Product: required testliner or fluting specification, finished width and basis-weight range.
- Production: target tonnes/day, furnish, quality requirements and planned operating schedule.
- Project: destination, receiving-site utilities, available space and installation timing.
Include these requirements in your enquiry so that the equipment list and technical review can be matched to your project.
Inspection and project planning
Request the current equipment list, available technical records, condition information and inspection arrangements. Compare the machine with your required grade, furnish, finished width, production target and receiving-site utilities.
Define the included equipment, removal responsibilities, match-marking, packing, transport and any installation or commissioning assistance in a written project scope.
Questions about this paper machine
Which paper grades and basis weights are listed?
The machine is listed for testliner, fluting and brown containerboard at 90–200 g/m². Review the intended furnish and finished-paper requirements against the detailed equipment information.
What do the capacity and speed figures describe?
The working width is 5,150 mm and the listed capacity is approximately 380 tonnes/day. Design speed is 1,000 m/min, while the listed operating speed is 650 m/min. Assess these separately for the intended grade, basis weight and production conditions.
Which upgrades and associated equipment are identified?
The description identifies a shoe press, Bellmer headbox from 2018, ABB QCS, Bellmer rewinder from 2019 and a complete OCC line. Confirm the equipment boundary, condition, records and integration interfaces during technical review.
What should I request before planning a purchase or relocation?
Request the equipment list, available drawings and records, current condition and inspection options. Share your product, furnish, required output, destination and timing. The review should establish utilities, integration needs, removal responsibilities and the agreed delivery or restart scope.
