Confidential Industrial Asset Opportunity

European Twin-Wire Gap Former Paper Machine

4,400 mm | Approx. 300 TPD | Testliner & Fluting

European paper machine for recycled packaging grades, originally built by ER-WE-PA / Overmeccanica. Twin-Wire Gap Former configuration, 4,400 mm finished width, 90–150 gsm basis weight range, approx. 300 TPD capacity, with major rebuilds in 1998 and 2015 and Pope Reel upgrade in 2021.

Working Width
4,400 mm
Capacity
Approx. 300 TPD
Grades
Testliner / Fluting
Technology
Twin-Wire Gap Former

Key Highlights: ER-WE-PA / Overmeccanica design, 4,850 mm wire width, 90–150 gsm, design speed 1,000 m/min, max operating speed 800 m/min, KÜSTERS S-Roll press section, 39 dryers, Pope Reel, Jagenberg Slitter Rewinder and OCC stock preparation equipment.

Technical specifications

Machine configurationTwin-wire gap former
Original manufacturerER-WE-PA / Overmeccanica
Finished paper width4,400 mm
Wire width4,850 mm
Listed production capacityApproximately 300 tonnes/day
Paper gradesTestliner and fluting
Basis weight range90–150 g/m²
Design speed1,000 m/min
Listed maximum operating speed800 m/min
Press sectionKÜSTERS S-Roll
Dryer section39 dryers

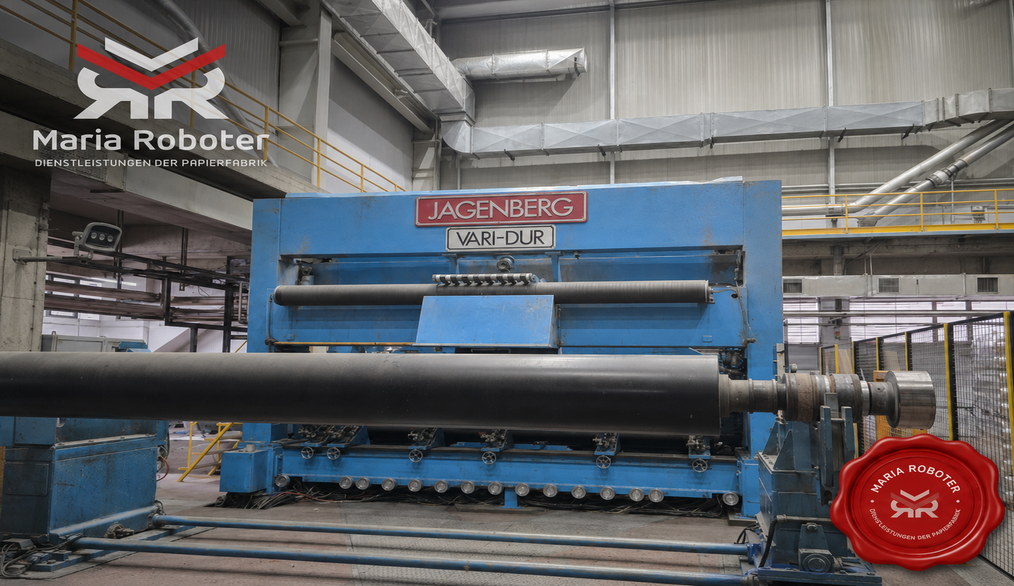

Reeling and windingPope Reel and Jagenberg slitter rewinder
Stock preparationOCC stock-preparation equipment
Published upgrade historyMajor rebuilds in 1998 and 2015; Pope Reel upgrade in 2021

Inspection and project planning

Request the current equipment list, available technical records, condition information and inspection arrangements. Compare the machine with your required grade, furnish, finished width, production target and receiving-site utilities.

Define the included equipment, removal responsibilities, match-marking, packing, transport and any installation or commissioning assistance in a written project scope.

Questions about this paper machine

Which paper grades and basis weights are listed?

This 4,400 mm machine is listed for testliner and fluting at 90–150 g/m². Compare the intended furnish and finished-paper specification with the detailed technical file.

How do the capacity and speed figures differ?

The listed capacity is approximately 300 tonnes/day. Design speed is 1,000 m/min; the listed maximum operating speed is 800 m/min. Review these figures alongside the paper grade, basis weight and operating conditions for the proposed application.

Which sections and upgrades are identified?

The description identifies a KÜSTERS S-Roll press section, 39 dryers, Pope Reel, Jagenberg slitter rewinder and OCC stock-preparation equipment. Major rebuilds are listed for 1998 and 2015, with a Pope Reel upgrade in 2021. Confirm the final equipment list and available records during technical review.

How can a qualified buyer arrange a technical review?

Use the enquiry form below to share your company, product, required output, destination and project timing. Request the current equipment list, technical documents, condition information and inspection arrangements. The acquisition, dismantling, delivery and any restart assistance are defined in the agreed project scope.

Request technical file and inspection
CONTACT PROJECT TEAM
Responsible Project Manager for 4,400 – 5,100 mm Paper Machine Opportunities
Confidential project information, technical documentation and site visit arrangements are available for qualified industrial buyers.
