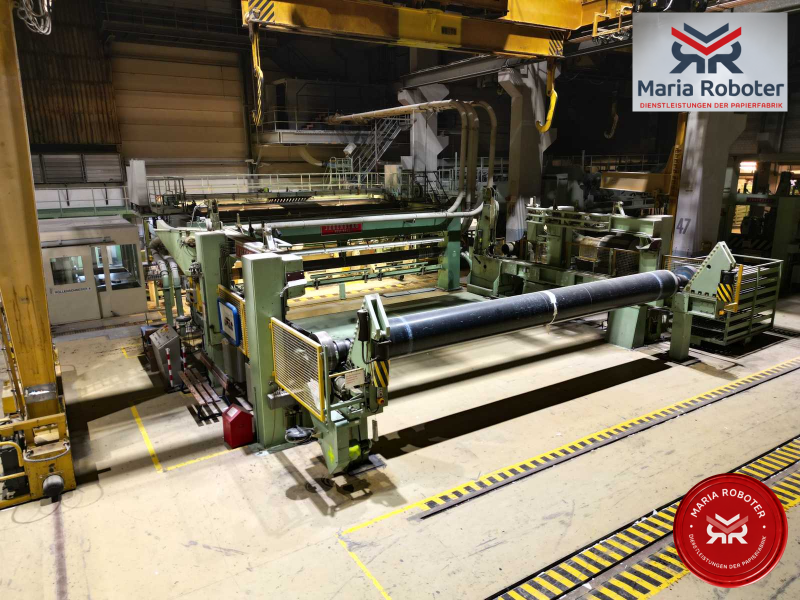

JAGENBERG Vari-Roll Paper Rewinder
Built 1980 · Paper finishing equipment
Select a photograph to request details for MR100132.
Application highlights
- Documented paper grammage range of 63–115 g/m².
- Approximately 10 individual rewinding stations for assessment of the required reel configuration.
- Listed maximum working speed of 2,400 m/min; suitability for the intended operating duty requires confirmation.
For paper-finishing teams evaluating reel preparation within the documented 63–115 g/m² range. Grade suitability, web-width interpretation and finished-reel requirements must be checked against the technical documentation.
- Manufacturer
- JAGENBERG
- Type
- Vari-Roll
- Year of manufacture
- 1980
- Rebuild
- 1999
- Working width
- 7,400 mm
- Maximum web width, as listed
- 3,000 mm — relationship to working width requires clarification
- Maximum working speed, as listed
- 2,400 m/min
- Maximum roll diameter
- 1,500 mm
- Basis weight
- 63–115 g/m²
- Rewinding stations
- Approximately 10 individual stations
- Control
- PC control
- Inventory number
- 21600147
Full listed configuration
- Centre-winding arrangement and support equipment as listed.
- Tambour unwinding.
- Pre-trimming knife and slitter section.
- Control room with soundproof enclosure.
- Camera monitoring.
