FACIAL TISSUE BOX PACKAGING · INDIVIDUAL MACHINE

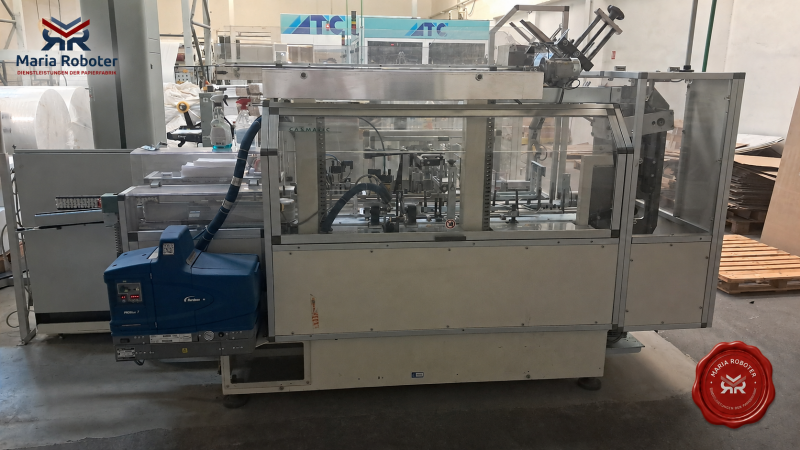

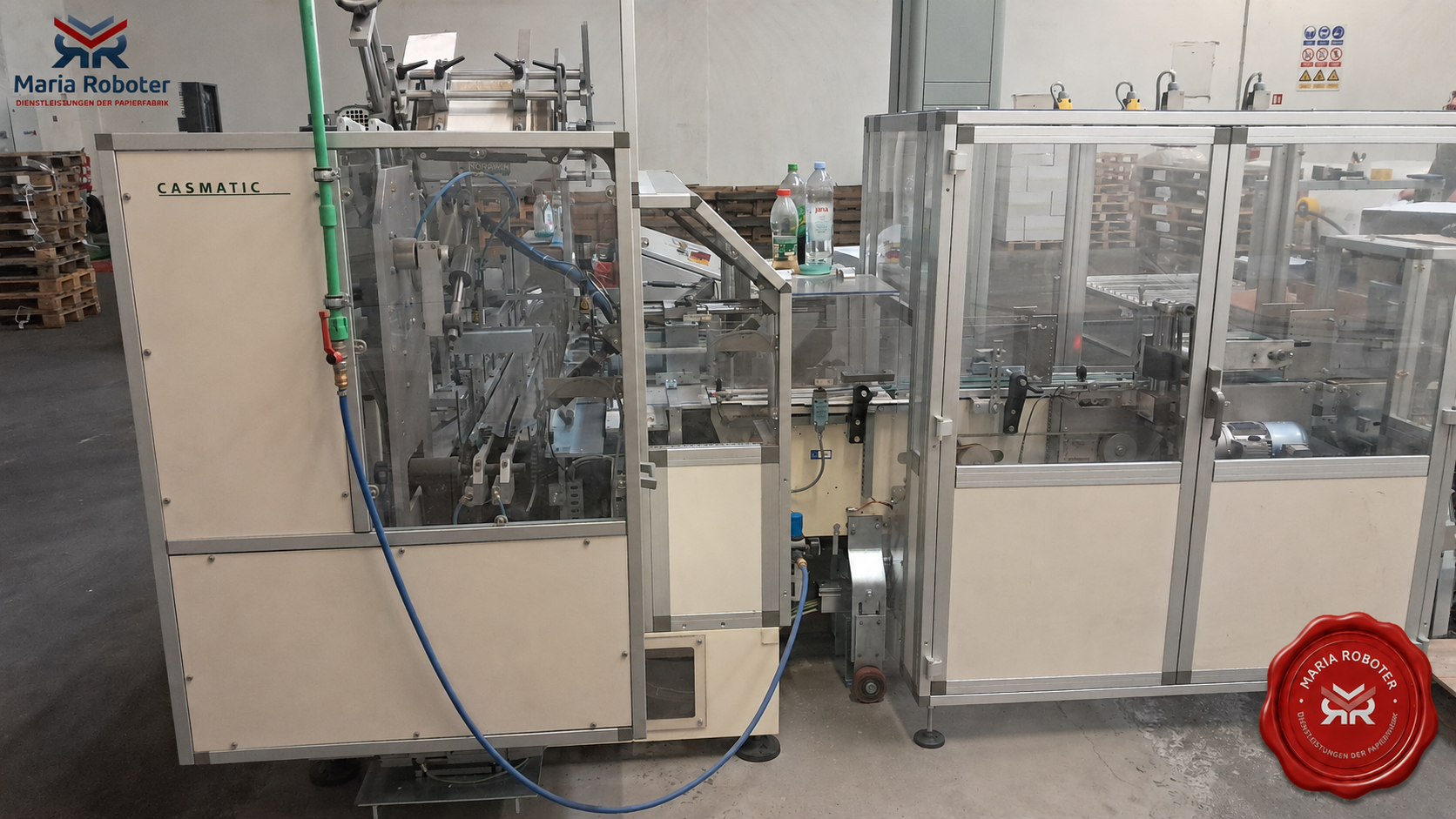

Fabio Perini / Casmatic IN5 Facial Tissue Packer
Manufactured in 2014 with 66 recorded operating hours. Purchased new and used only for limited testing.
Available for inspection in Europe. A dry-run video is available on request.
Request DetailsTechnical specifications
| Manufacturer | Fabio Perini / Casmatic – Körber Process Solutions |
|---|---|
| Model | IN5 |
| Equipment reference | MR-IN5-2014 — Maria Roboter internal reference |
| Year | 2014 |
| Recorded operating hours | 66 |
| Application | Facial tissue box packaging |
| Installed box format | 115 × 50 × 224 mm |
| Included tooling | Currently installed format tooling |
| Other formats | Adaptable with the corresponding tooling |
| Cube-style boxes | Possible with additional tooling; this tooling is not included |
| Condition | Purchased new; used only for limited testing |
| Inspection and video | Inspection in Europe; dry-run video available on request |
Included equipment, optional stock and format tooling
| Included in the listed machine offer | The IN5 facial-tissue box packer with its currently installed 115 × 50 × 224 mm format tooling. |
|---|---|
| Optional material — separate confirmation | One pallet of printed facial-tissue cartons for the installed format and 10 facial tissue mother reels: 2-ply, 16 gsm, 2,700 mm wide, approximately 1,200 kg each. |
| Other carton formats | Corresponding format tooling is required. Cube-style boxes are possible with additional tooling; this tooling is not included. |
Final availability, condition, tooling and supply scope are subject to inspection and written confirmation.
Check the IN5 against your carton and production line
For a format and integration review, send your carton drawing or dimensions, tissue-stack dimensions, required output, existing infeed and discharge arrangement, destination and project timing. Our team can identify the information and tooling checks needed before an offer is agreed.

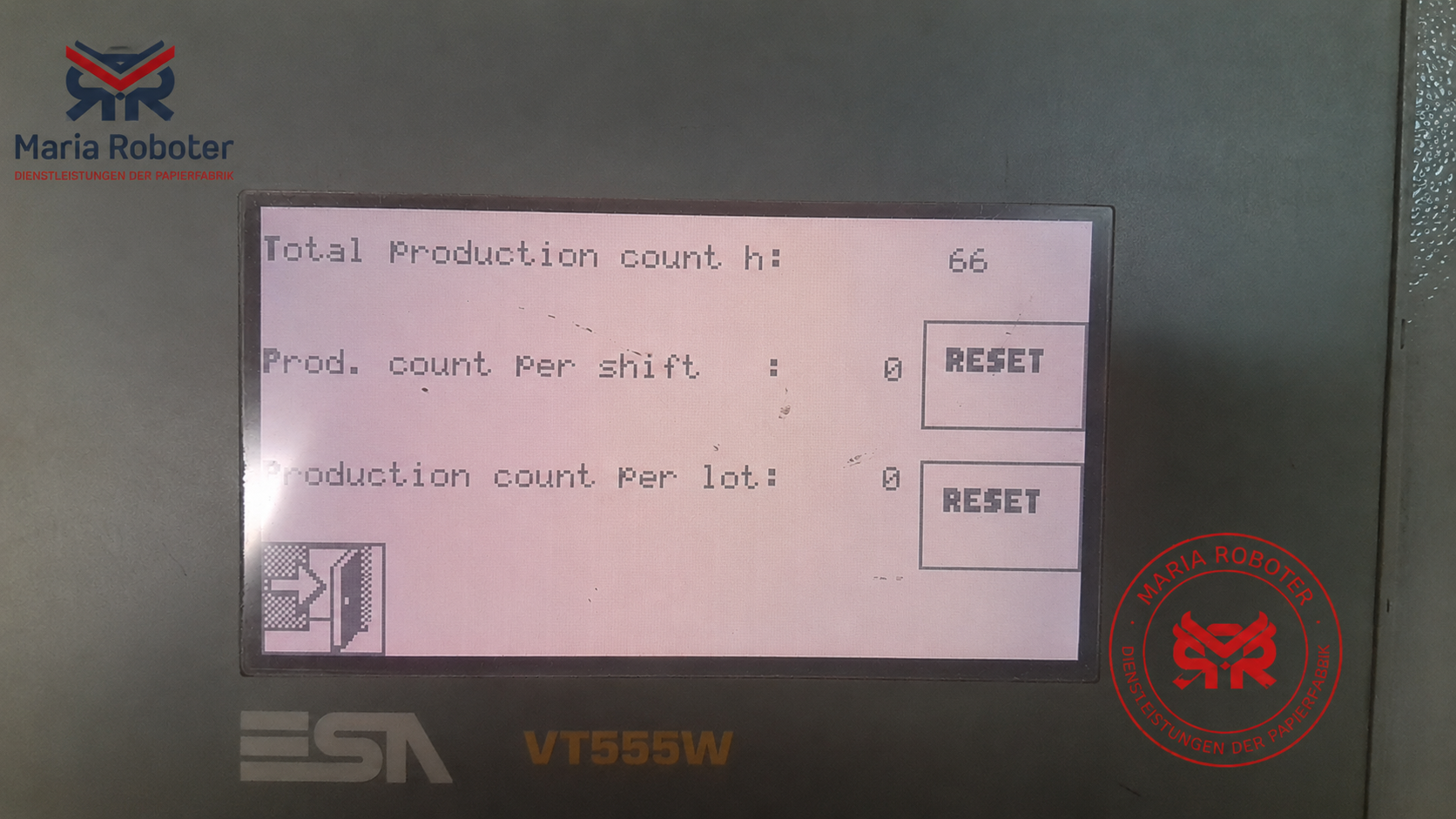

Request the available dry-run video and recorded operating-hours display together with the inspection arrangements. Your technical team can then review the machine condition, installed tooling, controls, utilities and line interfaces against the intended application.
For a wider project, compare our used tissue converting and packaging equipment or review our engineering and equipment-integration support.
Inspection, relocation and restart support
Maria Roboter GmbH can coordinate technical inspection, dismantling, loading, export packing, transport, reinstallation and start-up support. The required services and responsibilities are agreed for the project.
Frequently asked questions
Is this a complete tissue converting line?
No. This offer concerns an individual IN5 machine for facial tissue box packaging. The included tooling and any optional materials must be confirmed in the written supply scope.
Can the IN5 run other box formats?
The installed format is 115 × 50 × 224 mm. Other formats require corresponding tooling. Cube-style boxes require additional tooling, which is not included.
Can I inspect the machine or request a video?
Inspection in Europe can be discussed with Maria Roboter. A dry-run video is available on request. Please use reference MR-IN5-2014 in your enquiry.
