DP Italia LINK B135 Tissue Bagger & Bundler | 2010

A 2010 DP Italia LINK B135 multi-format bagger for toilet roll and kitchen towel packs. The listed range includes packs with horizontal or vertical roll arrangements, individually wrapped rolls and loose individual rolls within the machine envelope.

The original description presents continuous-cycle bag formation for high-quality packs and high production speeds. The design removes the lifting unit and piston-driven pusher group.

Eight pack formats are stated as included. The machine uses film from reels; heat-sealable polyethylene and/or polypropylene specifications are listed below. The required format parts and the exact eight supplied formats need confirmation.

Technical specifications

  • Manufacturer / model: DP Italia / LINK B135
  • Year (catalogue): 2010
  • Reported condition: Well maintained and operational before dismantling in March 2026.
  • Bag formation / design: Continuous-cycle bag formation for high-quality packs and high production speeds. The design eliminates the lifting unit and the piston-driven pusher group.
  • Product range: Bags containing tissue roll packs; multiple horizontal/vertical configurations, individually wrapped rolls and loose rolls, within the machine range.
  • Bag / product envelope: Width W: 300–850 mm; depth L: 180–1,200 mm; height H: 80–460 mm. Axis orientation must be checked against the machine documentation.
  • Rated production speed: Up to 30 bags/minute; actual output depends on format and feed.
  • Included formats: 8 pack formats stated as included.

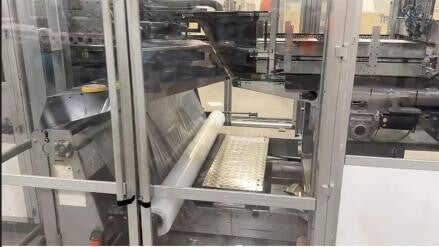

  • Packaging film: Heat-sealable polyethylene / polypropylene; thickness 35-75 micrometres; density 0.870-0.930 kg/dm3.
  • Film reel dimensions: Maximum film width 2,500 mm; maximum external reel diameter 400 mm.
  • Changeover times: Format: approximately 30-40 min. Film reel: approximately 10 min.

Equipment scope and condition

  • The supplied description reports good preservation and operation before dismantling in March 2026.
  • Current storage conditions, completeness and restart requirements remain to be confirmed.
  • Confirm the eight included pack formats, required change parts, product-feed interfaces and manuals.

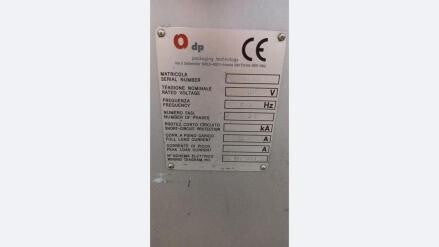

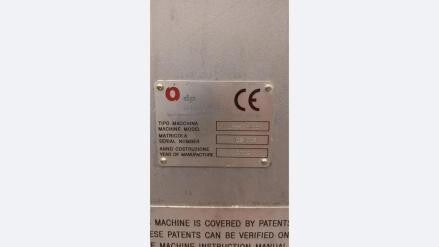

  • Two DP plate photographs are supplied, but their model, serial number, year and electrical fields cannot be reliably transcribed; plate-to-machine assignment requires confirmation.
  • Availability, completeness, included accessories and final commercial terms are subject to confirmation.

Frequently asked questions

What products can the LINK B135 bag?

It is listed for bags containing toilet roll and kitchen towel packs. The description includes horizontally or vertically arranged roll packs, individually wrapped rolls and loose individual rolls within the machine range, using the necessary format parts.

What is its stated speed and bag size range?

Rated output is up to 30 bags per minute. The listed envelope is width W 300–850 mm, depth L 180–1,200 mm and height H 80–460 mm. Axis orientation and the required format must be checked against the machine documentation.

What packaging film does it use?

Heat-sealable polyethylene and/or polypropylene film is listed at 35–75 µm thickness and 0.870–0.930 kg/dm³ density. Maximum film width is 2,500 mm and maximum external reel diameter is 400 mm.

Are format parts included, and how long is changeover?

Eight pack formats are stated as included; their exact configurations need confirmation. The listed average format change is 30–40 minutes, and a reel change is approximately 10 minutes.

What condition is stated for this bagger?

The description reports good preservation and operation before dismantling in March 2026. Current storage conditions and the work required for restart are not yet verified.

Can Maria Roboter support export and reinstallation?

Maria Roboter GmbH can assess technical evaluation, dismantling where required, match-marking, export packing, transport, reinstallation and commissioning support, subject to the selected equipment and agreed project scope.

Request technical details and a quotation

Please reference equipment 02 and provide your required product, format, output and delivery requirements. Maria Roboter will review the technical fit and prepare a proposal for the agreed equipment and service scope.
